DJI Phantom 4 Phantom 4 Pro Gimbal Camera Yaw Roll Bracket Phantom 4 4 Pro Pitch Roll Yaw Motor USED

Issuing time:2020-08-08 17:23

DJI Phantom 4 Phantom 4 Pro Gimbal Camera Yaw Roll Bracket Phantom 4 4 Pro Pitch Roll Yaw Motor USED

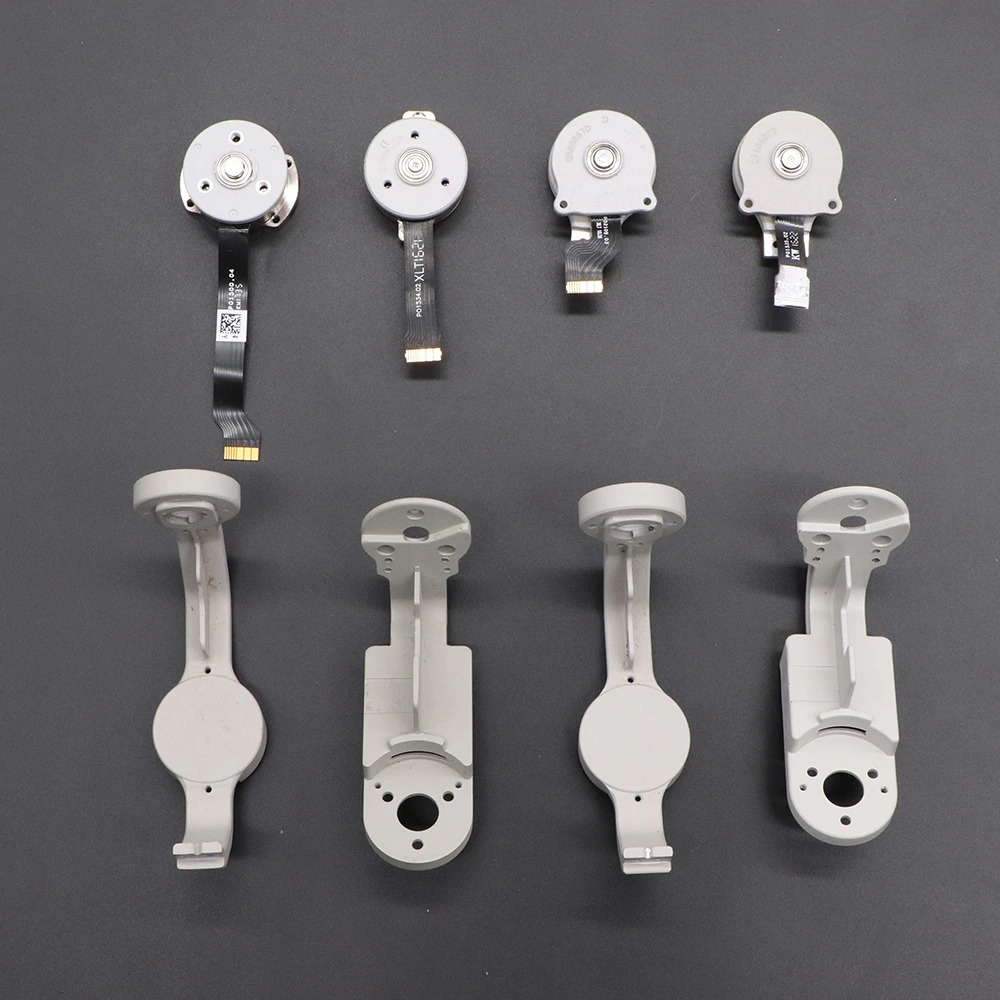

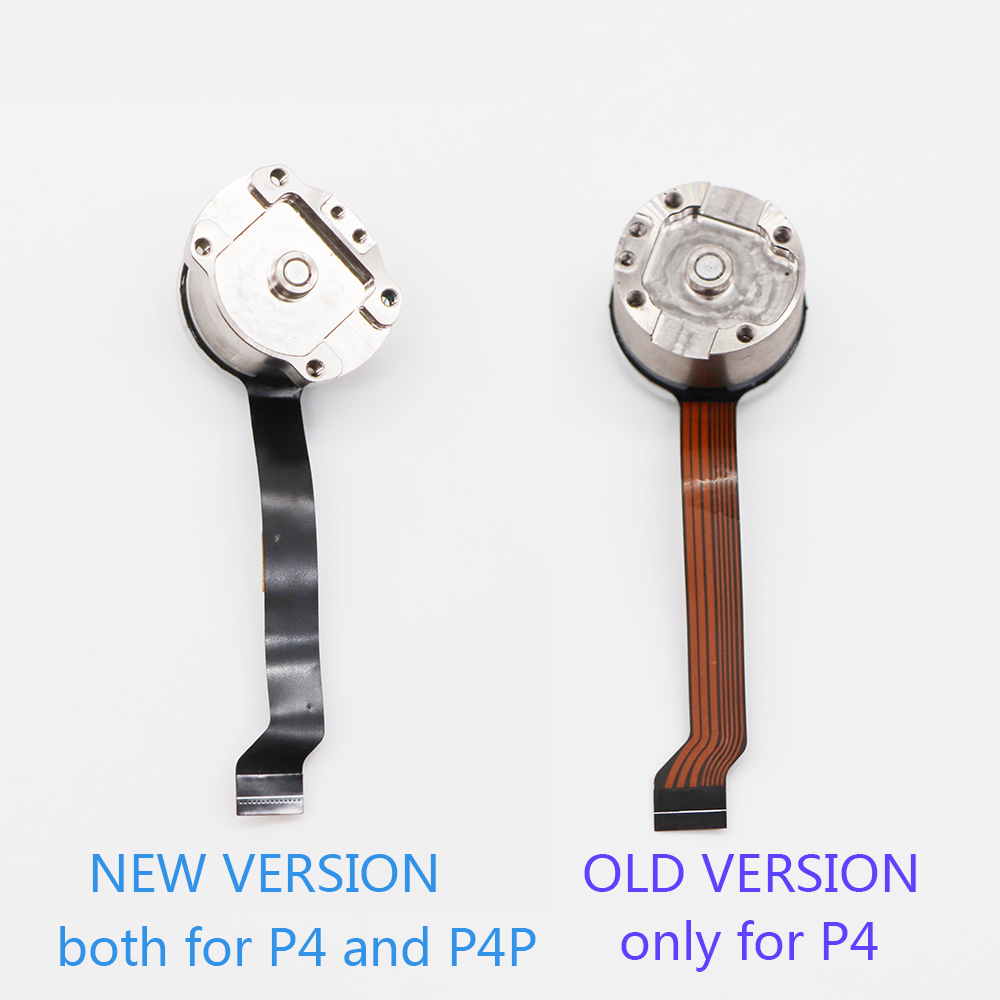

1: Yaw Motor for DJI Phantom 4 (New Version)

2: Yaw Motor for DJI Phantom 4 (Old Version)

3: Roll Motor for DJI Phantom 4

4: Pitch Motor for DJI Phantom 4

5: Yaw Bracket for DJI Phantom 4

6: Roll Bracket for DJI Phantom 4

7: Yaw Motor for DJI Phantom 4 Pro (New Version) =Yaw Motor for DJI Phantom 4 (New Version)

8: Roll Motor for DJI Phantom 4 Pro=Roll Bracket for DJI Phantom 4

9: Pitch Motor for DJI Phantom 4 Pro

10: Yaw Bracket for DJI Phantom 4 Pro

11: Roll Bracket for DJI Phantom 4 Pro


1 P4 Yaw Motor.jpg

1: Yaw Motor for DJI Phantom 4 (New Version)


2 P4 Y Motor Old.jpg

2: Yaw Motor for DJI Phantom 4 (Old Version)



3 P4 Roll Motor.jpg

3: Roll Motor for DJI Phantom 4



4 P4 Pitch Motor.jpg

4: Pitch Motor for DJI Phantom 4



5 P4 Yaw Bracket.jpg

5: Yaw Bracket for DJI Phantom 4



6 P4 Roll Bracket.jpg

6: Roll Bracket for DJI Phantom 4



7 P4 Pro Yaw Motor.jpg

7: Yaw Motor for DJI Phantom 4 Pro (New Version) =Yaw Motor for DJI Phantom 4 (New Version)



8 P4 Pro Roll Motor.jpg

8: Roll Motor for DJI Phantom 4 Pro



9 P4 Pro Pitch Motor.jpg

9: Pitch Motor for DJI Phantom 4 Pro



10 P4 Pro Yaw Bracket.jpg

10: Yaw Bracket for DJI Phantom 4 Pro


11 P4 Pro Roll Bracket.jpg

11: Roll Bracket for DJI Phantom 4 Pro



Tips 1:

Please note that   these Motors are used.   But it works because we tested before sell.

For now,nobody have this new these Motors because dji company forbid to sell.

Tips 2:

Kindly reminder: These parts require professionals and professional tools to replace. Especially the Y motor, it need professinal tool to fix and replace. We recommend that you check with your local professinal repairnan before buy it.

Tips 3:

If the gimbal camera doesn't fixed in the center after install the Y motor, pls following below steps to settle the problem.

Step 1: Measure the deviation angle of the gimbal camera;

Step 2: Measure and mark making on the counterclockwise direction of the metal plate   (the one for motor, above the shock-absorbing plate, next to the flat cable);

Step 3: Drill a screw hole with an electric drill on the metal plate. (If the gimbal camera go to the left deviation of 45 degrees, then pls drill a hole of 45 degrees to the right.)

Step 4: Install the Y motor.
