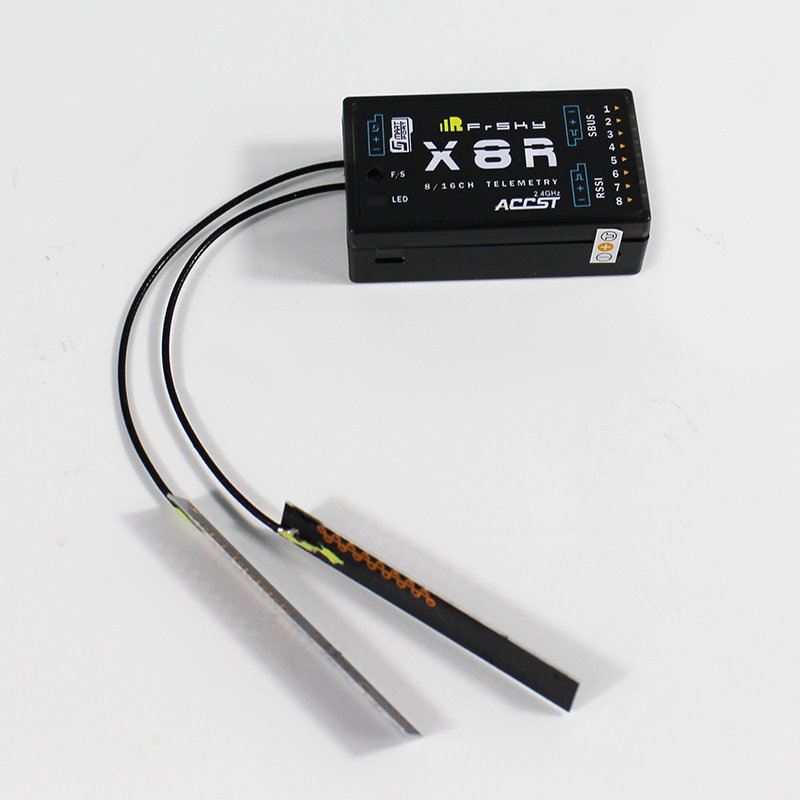

FrSky X8R 8/16Ch S.Bus ACCST Telemetry Receiver W/Smart Port (no antenna cover)
The X8R is in a Smaller package than previous 8 channel receivers but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The X8 protocol is also backward compatible! In D8 mode it works with the DHT, DJT, DFT and DHT-U transmitter modules.
Firmware Upgradable Y
Weight 16.6g
Case 46.25 x 26.6 x 14.2mm (L x W x H)
Operating Range full range (>1.5km)
Operating Voltage Range 4.0~10V
Operating Current 100mA@5V
Number of Channels 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port Or combine two X8R to become a 16 channels receiver)
Compatibility
FrSky DFT/DJT/DHT/DHT-U in D_mode
FrSky Taranis X9D/XJT in D8 mode
FrSky Taranis X9D/XJT in D16 mode

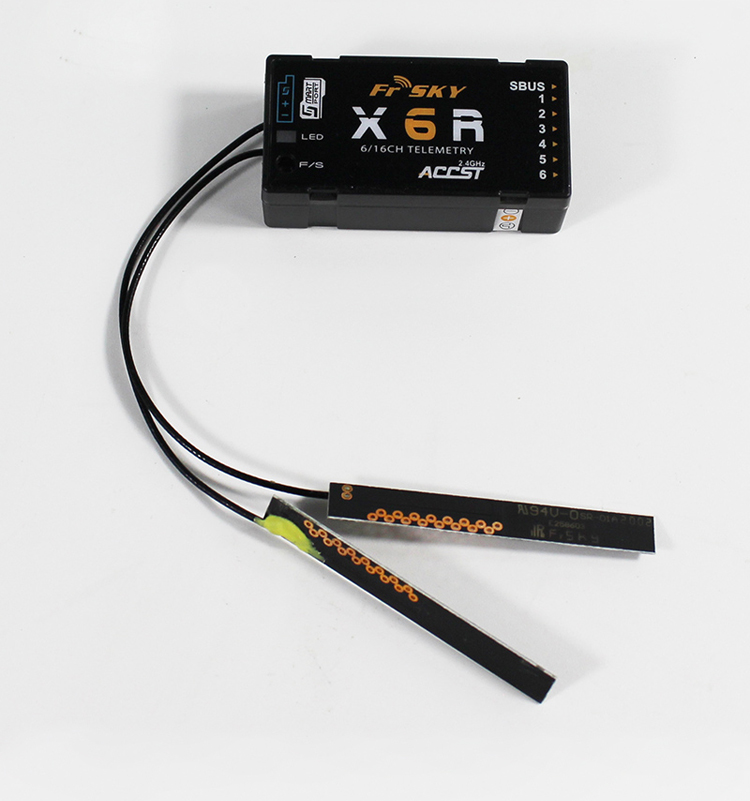

FrSky X6R 6/16Ch S.BUS ACCST Telemetry Receiver W/Smart Port
A top of the range 16 Channel X6R receiver from FrSky! (6 normal PWM outputs and all 16 channels on the dedicated S.BUS output)
While the X6R is no bigger than most other 6 channel receivers, it has much more capability. The Smart Port supports the full range of hub-less sensors as well as the older hub analog sensors and the A2 port on the bottom allows you to connect an FBVS-01 battey voltage sensor for basic external voltage monitoring by pulling the jumper out if you prefer that to the integrated telemetry.
Six standard servo outputs are by the X6R and you can access all 16 channels by using the S.BUS line with S.BUS supported servos or use a FrSky S.BUS Decoder for the full 16 channels.
The X6R is also backward compatible! In D8 mode it works with the DHT, DJT, DFT and DHT-U transmitter modules. In this mode you only have access to 8 channels but you still get to use the new Smart Port and digital sensors!
This is the perfect receiver for the FrSky X9D Taranis, with its built in XJT Module or any of the D8 systems to take advantage of the new digital Smart Port sensors.
Features:
• Solid RF link
• Inbuilt telemetry
• Up tp 16 channels supported by S.BUS
• Smart port enabled
• Upgradable firmware
Specs:
Dimension: 47mm x 24mm x 15mm
Weight: 12.2g
Operating Voltage Range: 4~10.0V
Operating Current: 100mA @ 5V
Operating Range: >1.5km (Full Range)
RSSI output: analog voltage output (0~3.3V)
Compatibility:
All 16 channels requires the FrSky X9D Taranis, or the XJT module.
For 8 channels in D8 Mode you can use the FrSky X9D Taranis or XJT, DJT, DFT, DHT and DHT-U modules
