2S-6S 6-36V UBEC-8A BEC DUAL UBEC 8A/16A 5.2/6.0/7.4v/8.4v Servo Separate Power Supply

2S-6S 6-36V UBEC-8A BEC DUAL UBEC 8A/16A 5.2/6.0/7.4v/8.4v Servo Separate Power Supply RC Car Fix-Wing Airplane Robot Arm

===

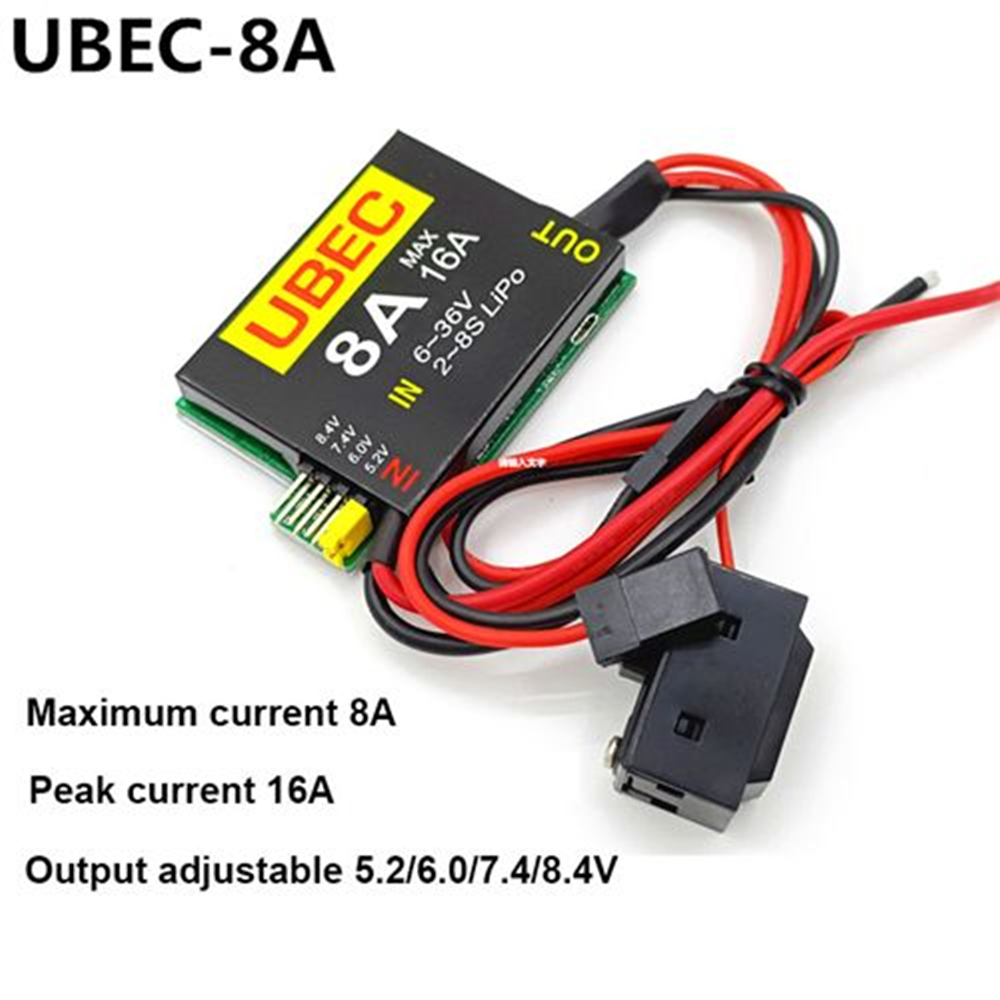

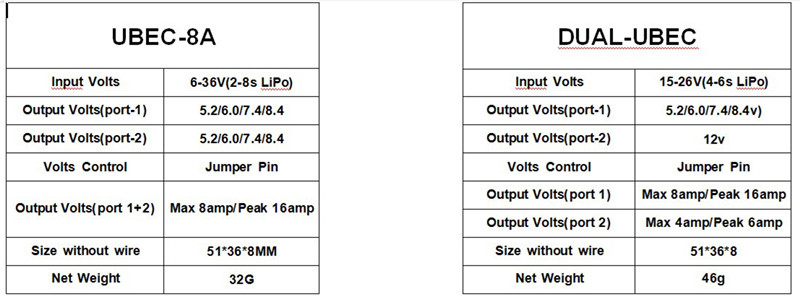

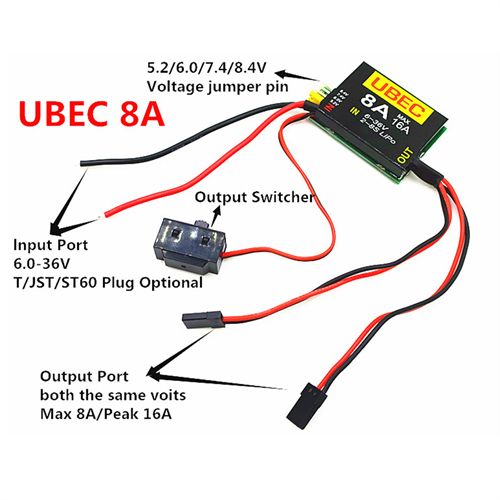

UBEC-8A

Input Volts:6-36V(2-8s LiPo)

Output Volts(port-1): 5.2/6.0/7.4/8.4

Output Volts(port-2): 5.2/6.0/7.4/8.4

Volts Control: Jumper Pin

Output Volts(port 1+2):Max 8amp/Peak 16amp

Size without wire: 51*36*8MM

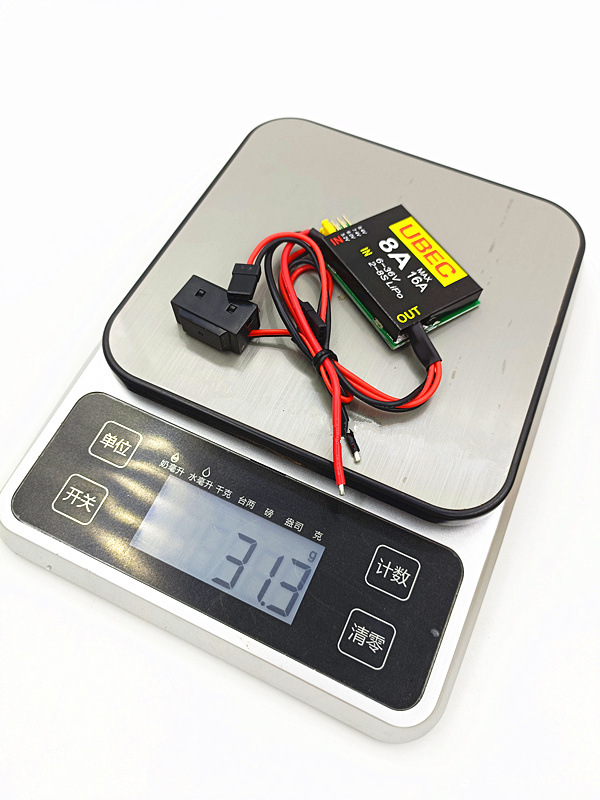

Net Weight: 32G

Features

1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%

2. The output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the use of aircraft model equipment of various voltage specifications

3. Dual parallel output, can carry larger current

4. With overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable

5. External switch, easy to open and close UBEC

6. Has a working status indicator, which lights up when the UBEC is working normally

Specification:

1. Input voltage: 6V-36V (2-8S)

2. Output voltage 5.2/6.0/7.4/8.4V optional

3. Output current: continuous 8A, instantaneous 16A

==

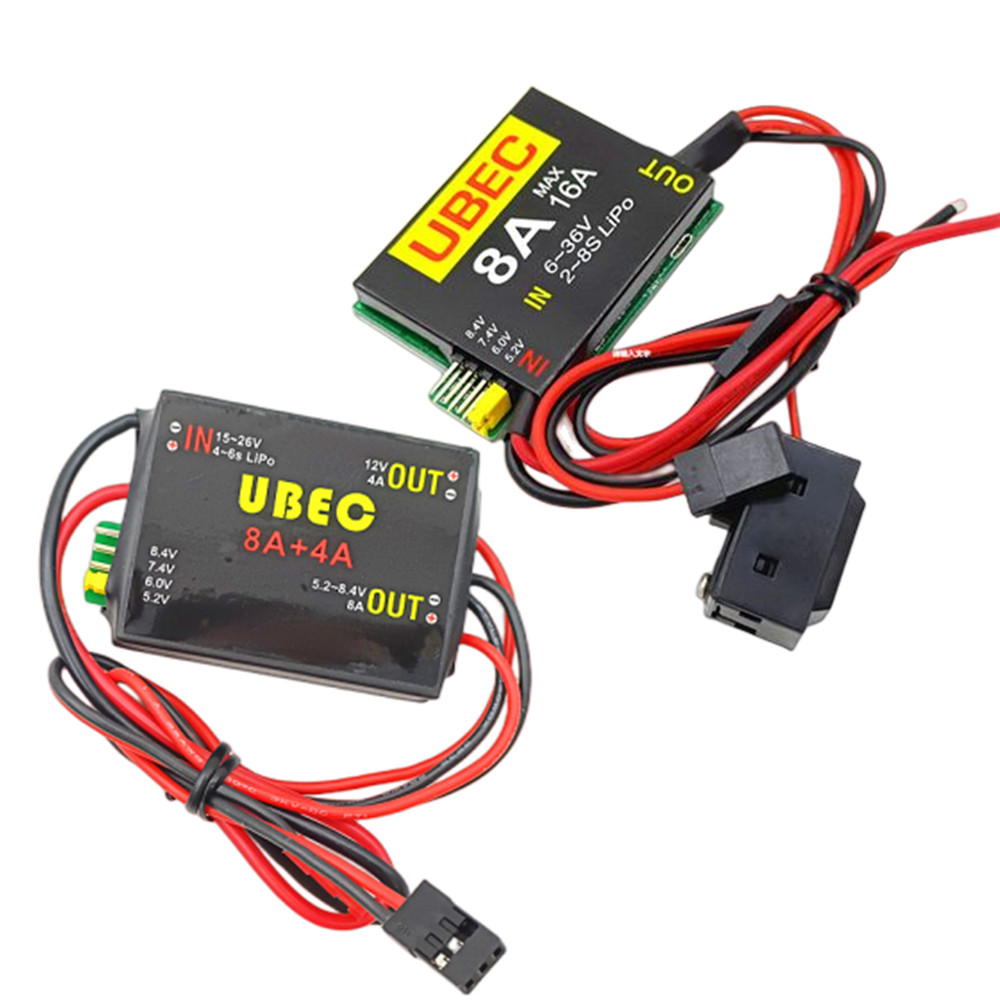

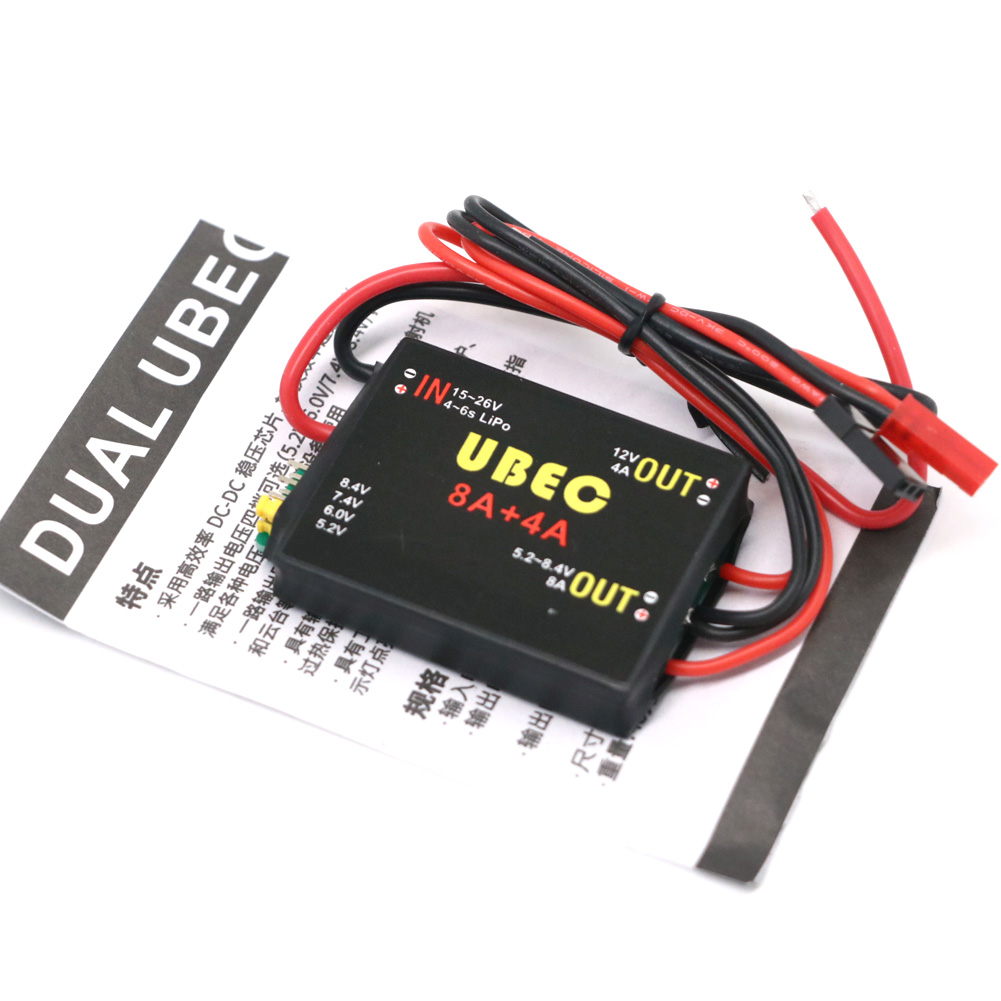

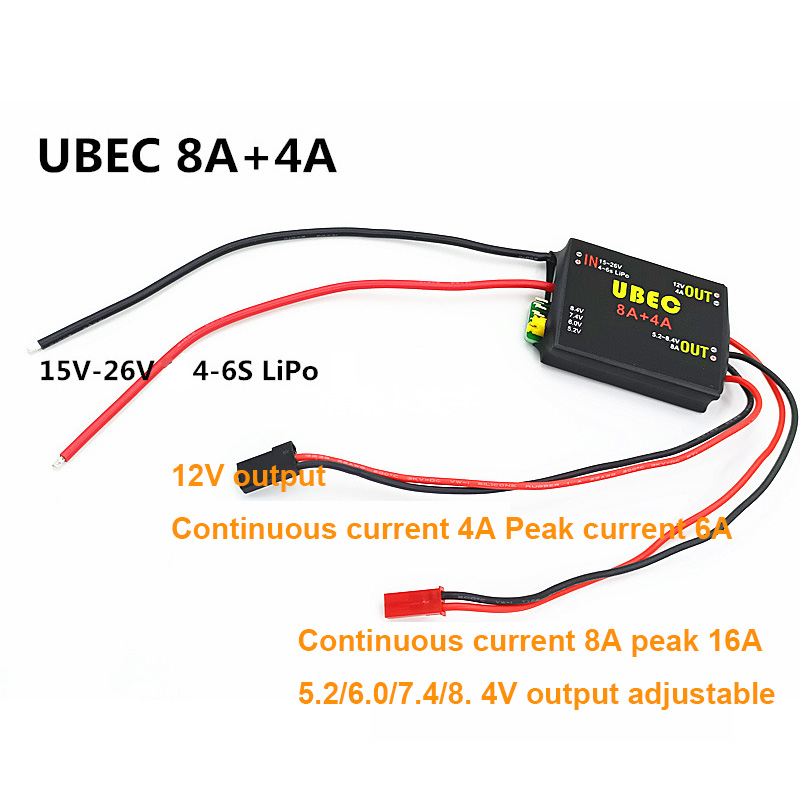

DUAL-UBEC

Input Volts: 15-26V (2-6s LiPo)

Output Volts(port-1):5.2/6.0/7.4/8.4v)

Output Volts(port-2): 12v

Volts Control :Jumper Pin

Output Volts(port 1):Max 8amp/Peak 16amp

Output Volts(port 2):Max 4amp/Peak 6amp

Size without wire:51*36*8

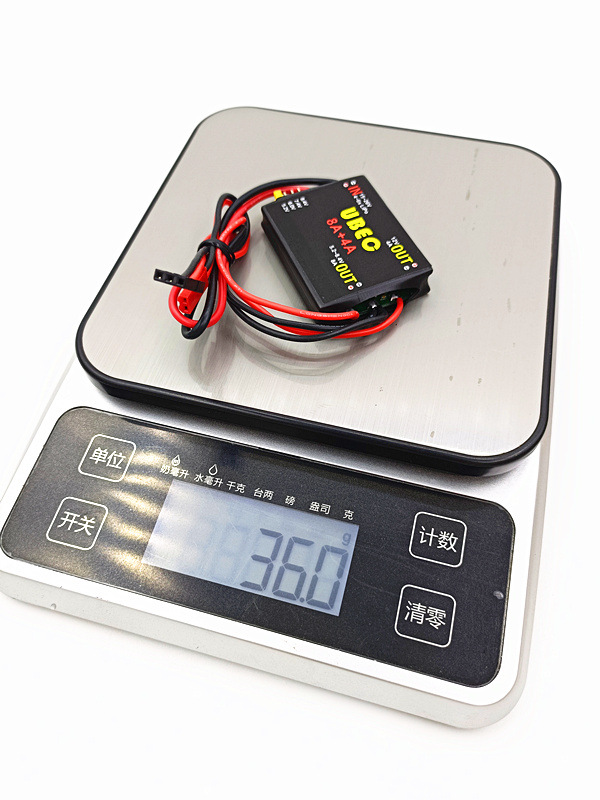

Net Weight: 46g

Features

1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%.

  2. One output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the role of aircraft model equipment of various voltage specifications

3. One output fixed 12V voltage, which can be used by cameras, video transmitters and PTZs and other equipment

4. With input reverse connection protection, overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable

5. Has a working status indicator, which lights up when the UBEC is working normally

Specification:

1. Input voltage: 15V-26V (4-6S)

2. Output voltage 5.2/6.0/7.4/8.4V optional, all the way fixed 12V

3. Output current: 5.2V-8.4V: continuous 8A, instantaneous 16A

12V: 4A continuously, 6A instantaneously
