1.2G 1.2GHz 1W 1.6W 2W 25mW/2000mW VTX Switchable Video Transmitter Module w/ 1.2G 8Ch VRX For FPV Long Range Racing Drone
1.2G 2W VTX:
1. When installing the image transmission, it is necessary to leave space to ensure air convection around the module and ensure module heat dissipation; Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission.
2. It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components.
3. It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module.
4. Please read the instruction manual before use, as this can correctly wire and extend the service life of the module.
Input Voltage: 7-36V DC;2-8S
Output Voltage: 5V 1A
12V Input Current: 235mA@Pitmode, 360mA@25mW, 880mA@2000mW,
Channels: 9CH (1060MHz-1380MHz)
Power: PIT/25/2000/mW
Antenna connector: MMCX Smart Audio: IRC-tramp Shell Material: Aluminum
Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole) Weight: 16g
Interface and button indicator light layout:
1. Frequency indicator light: red LED
2. Frequency band indicator light: blue LED
3. Power indicator light: Green LED
4. Frequency band and frequency point adjustment buttons
5. Power adjustment button
6.1.0 6P cable holder
7. MMCX antenna base
1.2G 1.6W VTX:
Video Input format: CVBS PAL/ NTSC
Frequency band: 1060-1380MHz
Channel Frequency: CH5-1240 CH1-1080 CH2-1120 CH3-1160 CH4-1200 CH6-1258 CH7-1280 CH8-1320 CH9-1360
Transmit Power: 14dB (25mW) 32dB(1600mW)
Input Voltage: DC 7-36V (3-6S Lipo)
Power Consumption: 400mA (±20mA)@12V
Operating Temp.: -10℃-+60℃
Dimension: 36mmx22mmx7mm
Weight: 10g (VTX)
Features:
Unlock top performance with our 1.3GHz band that shines with excellent environmental adaptability.
Reliable mechanical switch ensures easy and efficient power and channel setting.
Enjoy unrivalled clarity with a robust 1600mW transmitting power.
Never compromise on power with wide voltage input from 7-36V.
Supports IRC VTX control protocol for seamless operation and control and equipped with lightweight antenna.

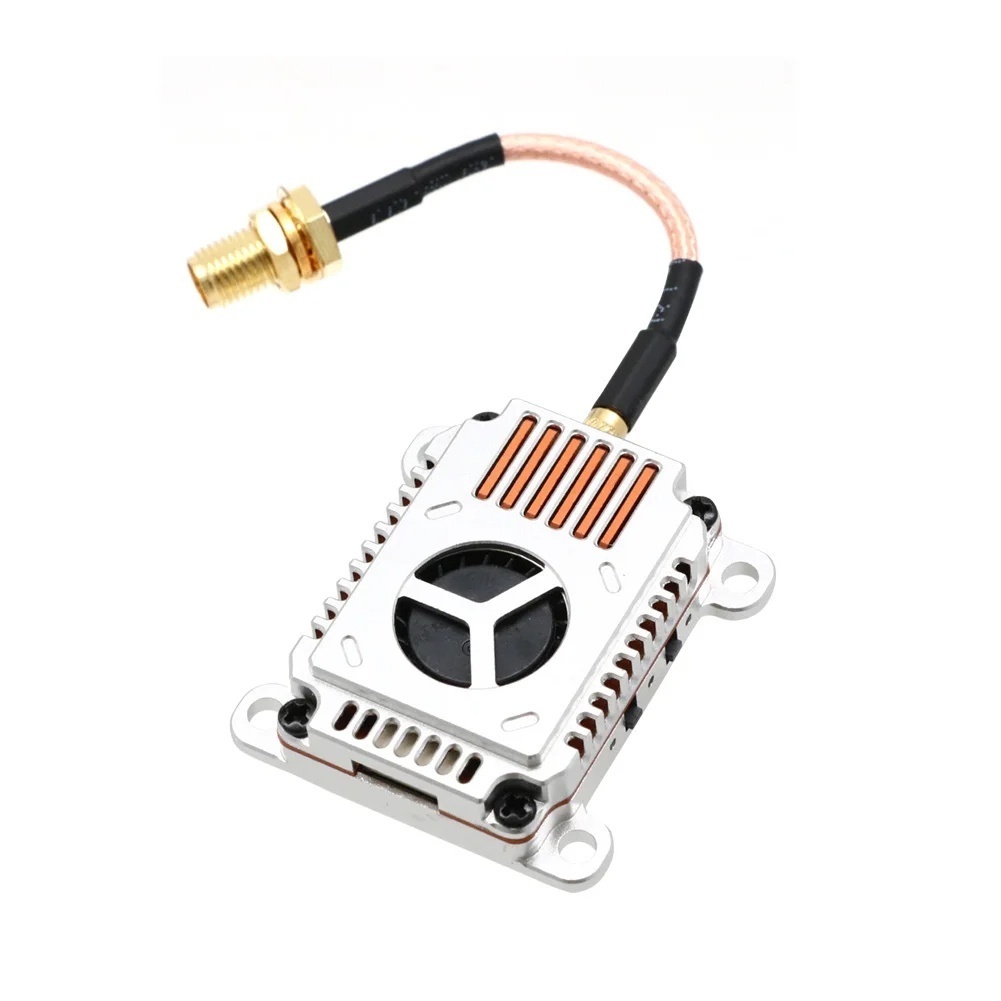

1.2G 1W VTX:
Input Voltage: 7-36V DC;2-8S
Output Voltage: 5V 1A
12V Input Current: 80mA@Pitmode, 170mA@25mW, 210mA@200mW, 380mA@1000mW
Channels: 8CH (1060MHz-1380MHz)
Power: PIT/25/200/1000/mW
Antenna connector: SMA
Dimensions: 45.5*35.6*11.5 mm; 30.5*30.5mm(hole)
Weight: 21g
1.2G VRX ：
Receiving frequency: 9CH (1050MHz to 1380MHz)
Input voltage：DC 7-36V
Current Consumption:（ 280±40）mA @5V Button control and LED indicators
On board regulator output: 5V 1A RX Sensitivity: -95dBm
Voltage Standing Wave Ratio: 2:1
Demodulation System: FM/PLL ANT. input impedance: 50Ω,Typ.
Video Output impedance: 75Ω,Typ.
Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)
RF Connector: SMA
Dimensions: 44mm (L)*27mm (W)*27mm (H)
Weight: 20g ( w/o antanna)
