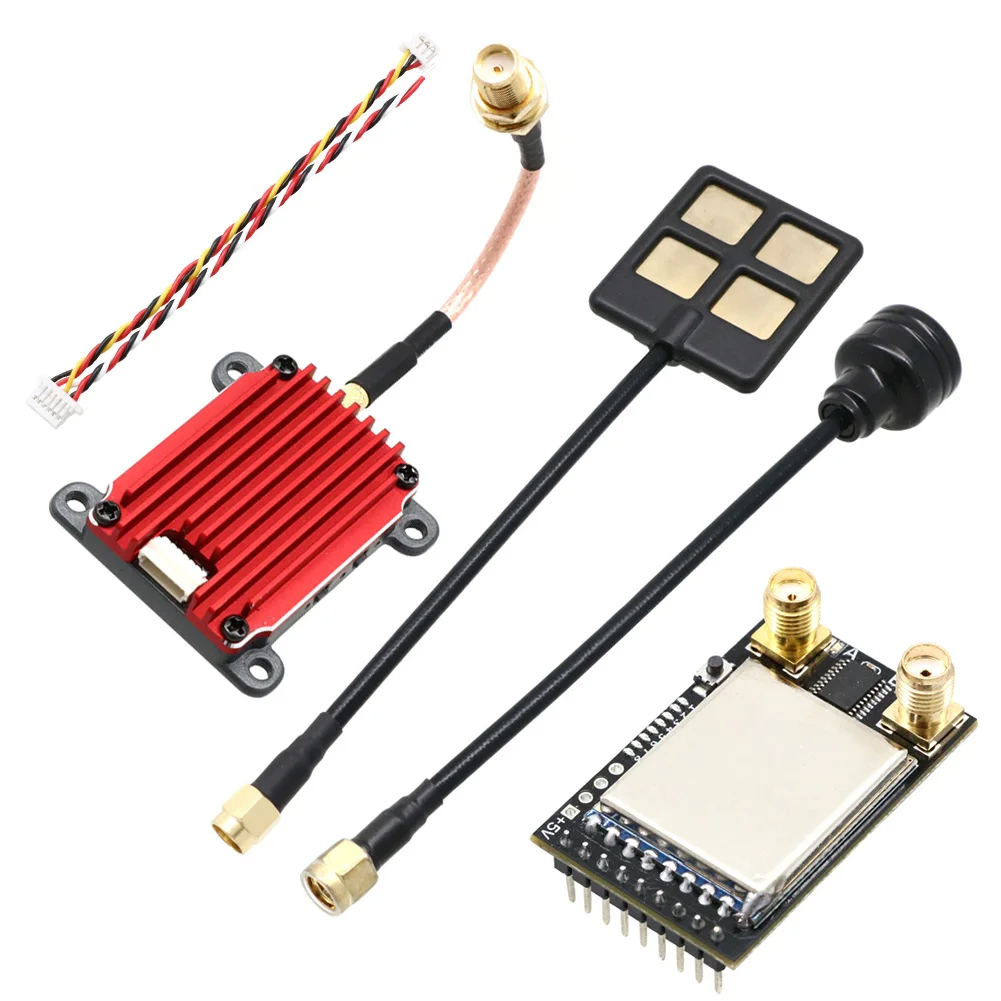

4.9G 1.6W 2.5W 8CH /5.8G 1.6W 48CH VTX Video VTX FPV 8CH 1600mW 2500mW 4.9G 8Ch VRX with Audio Video FPV Transmitter Receiver Module For Long Rang Racer Drone

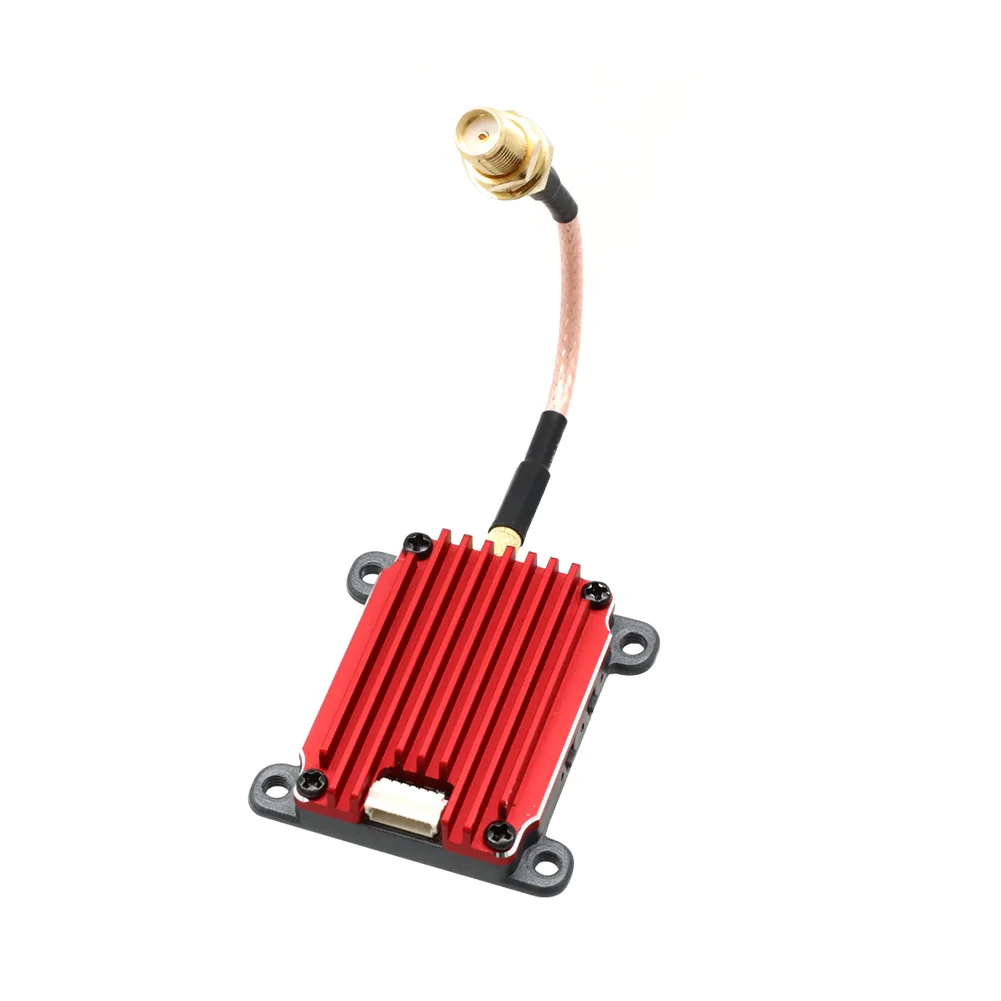

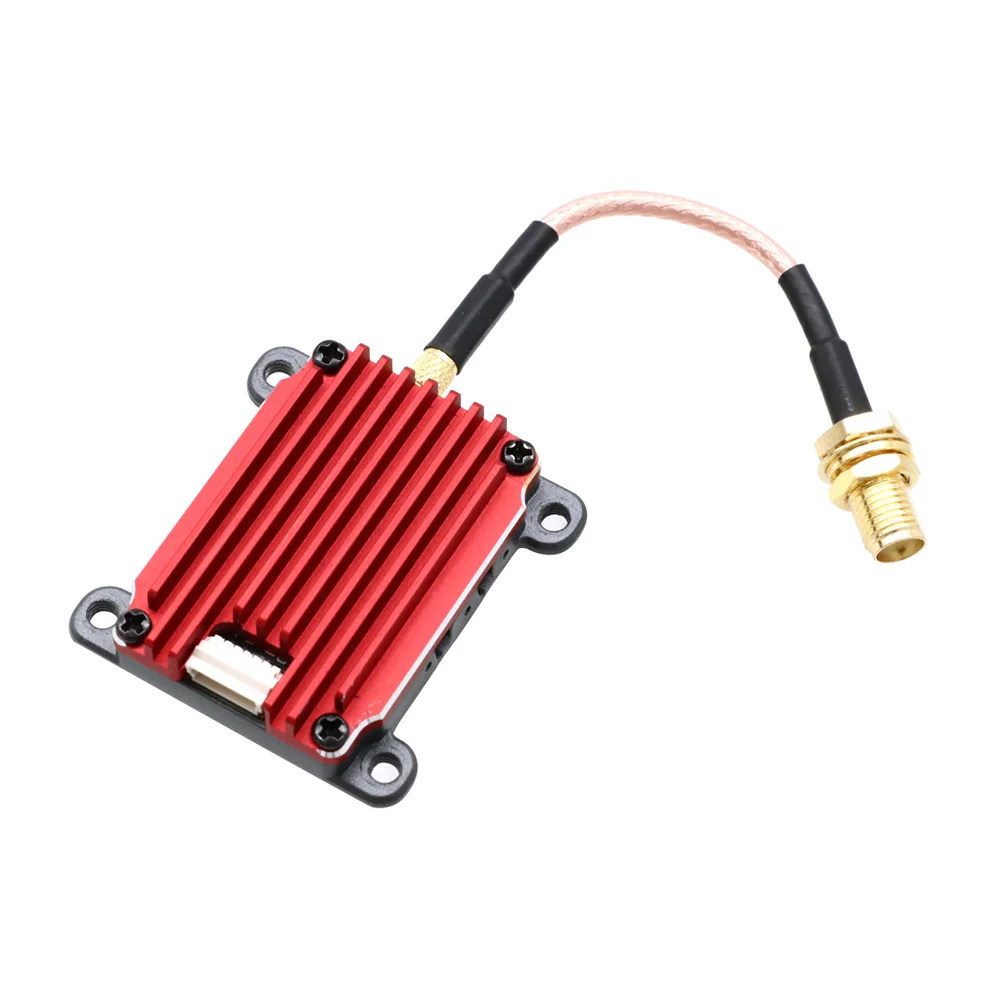

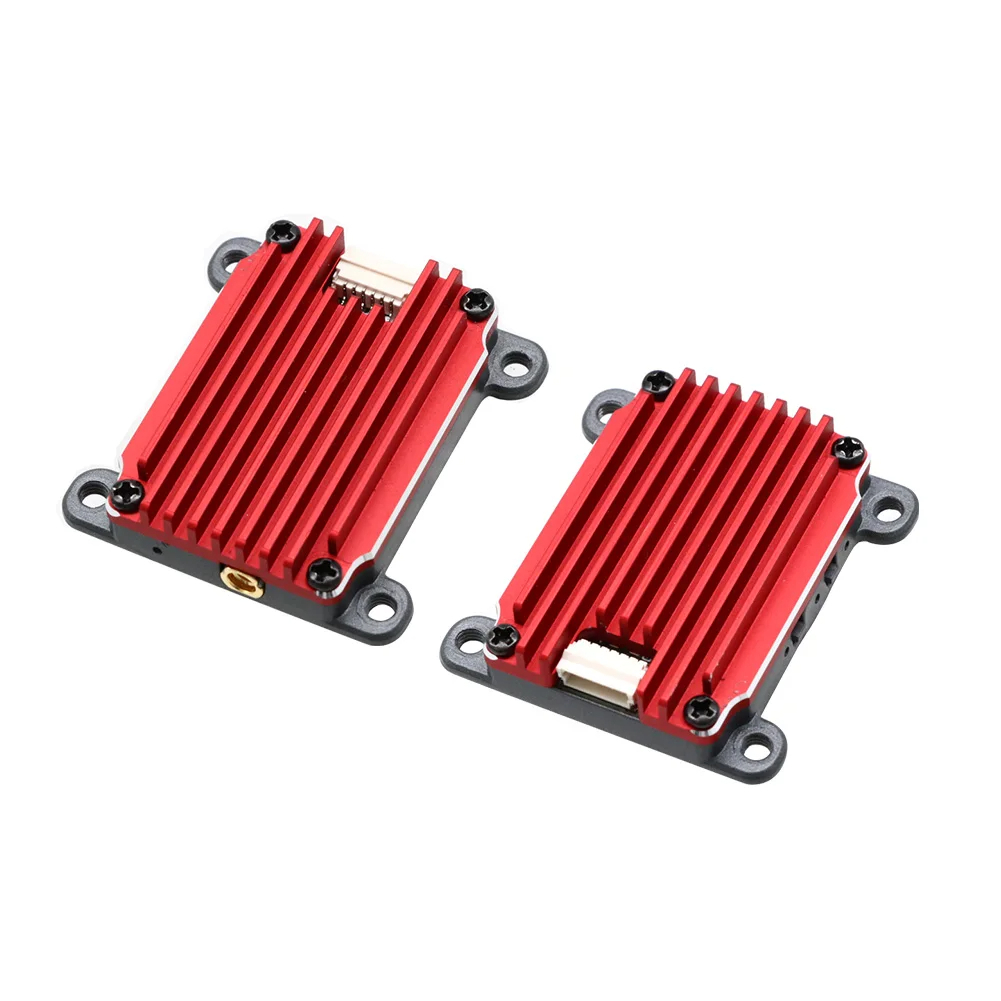

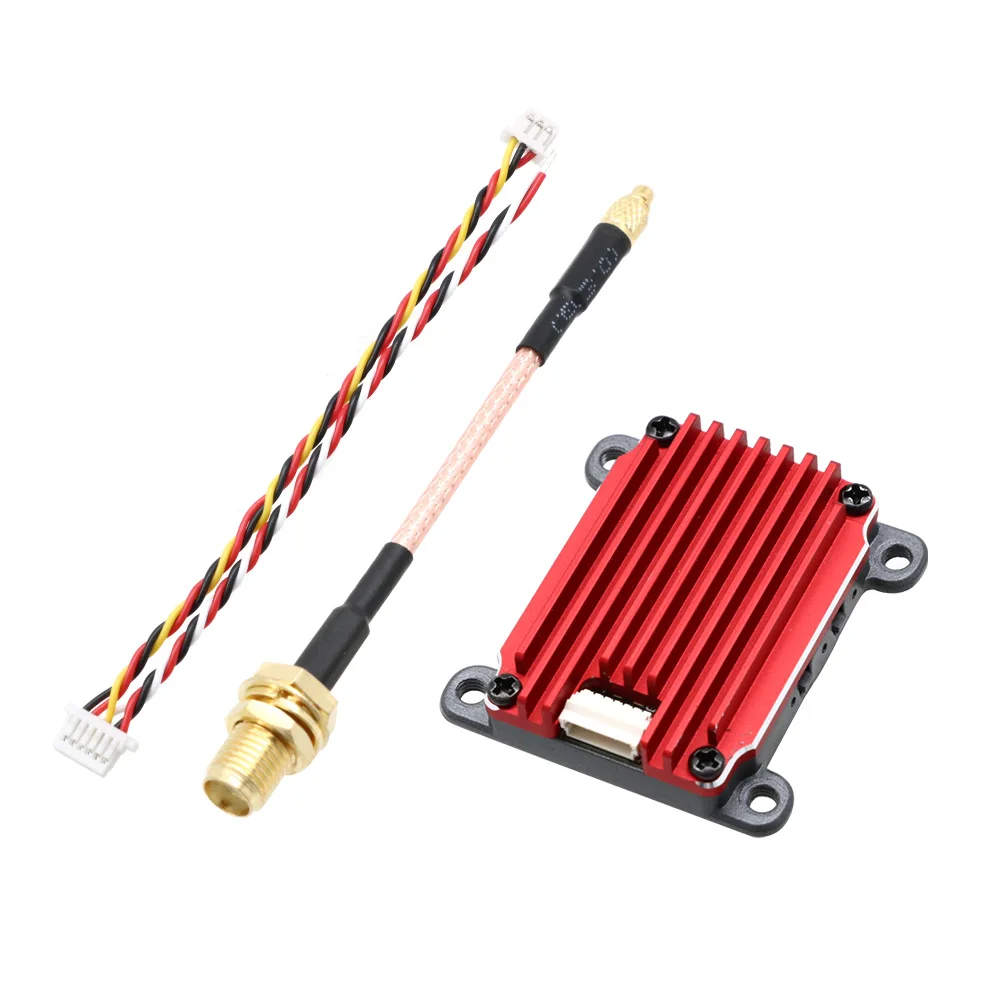

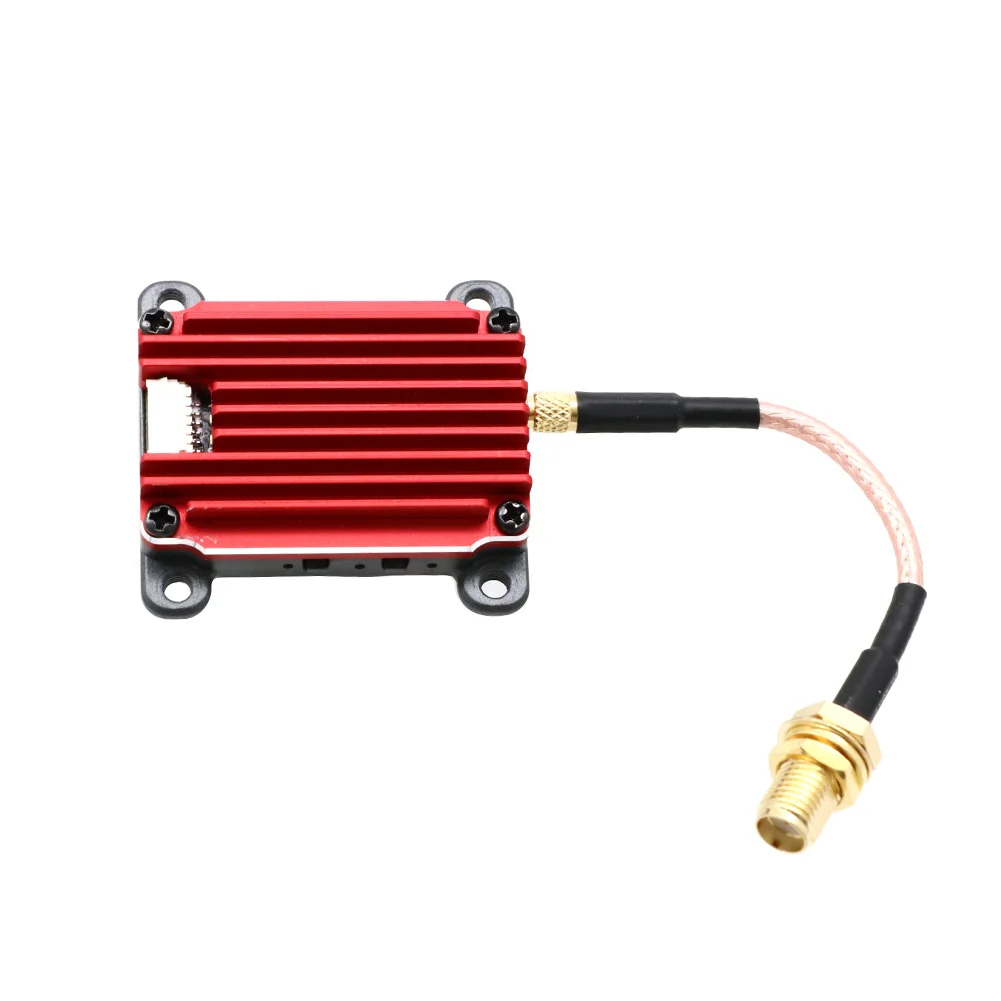

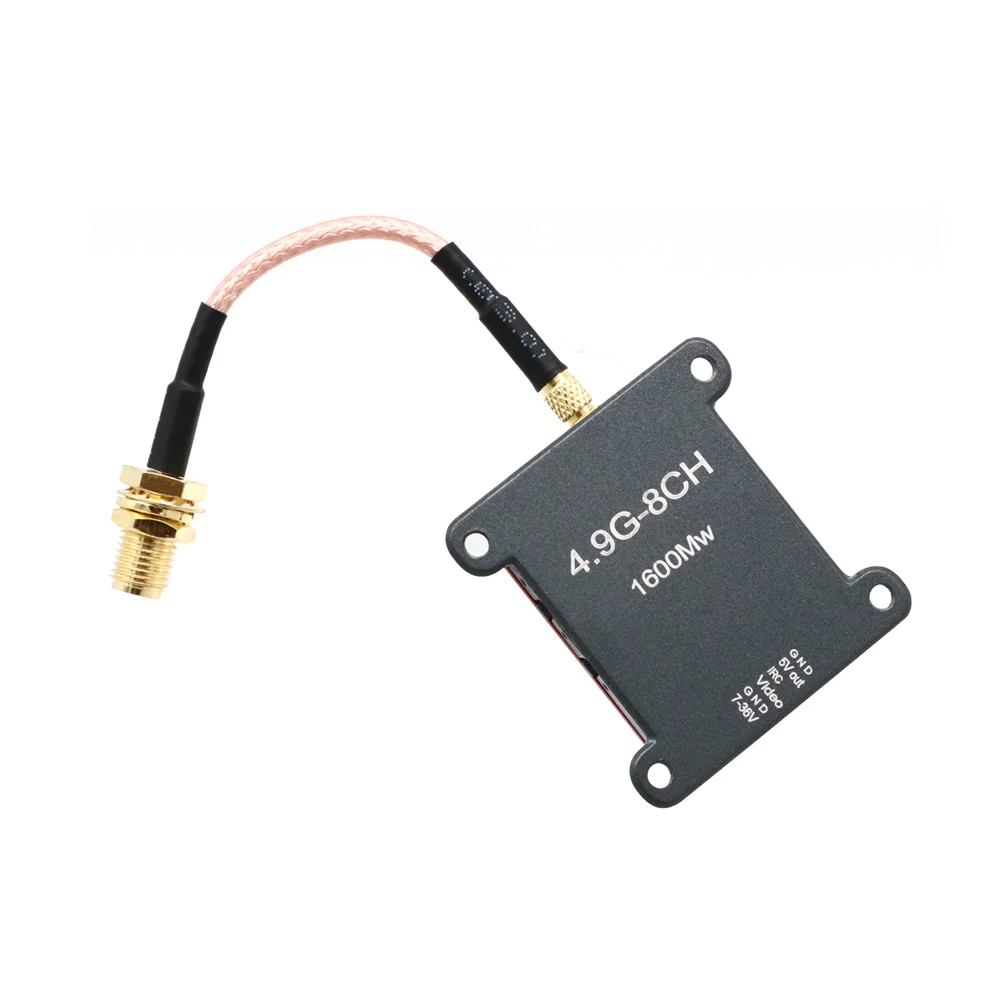

4.9G 1.6W VTX:
Input Voltage: 7-36V DC;2-8S Output Voltage: 5V 1A
12V Input Current: 180mA@Pitmode,
200mA@25mW, 330mA@400mW,
410mA@800mW, 620mA@1600mW
Channels: 8CH (4990MHz-5200MHz)
Power: PIT/25/400/800/1600 mW Antenna

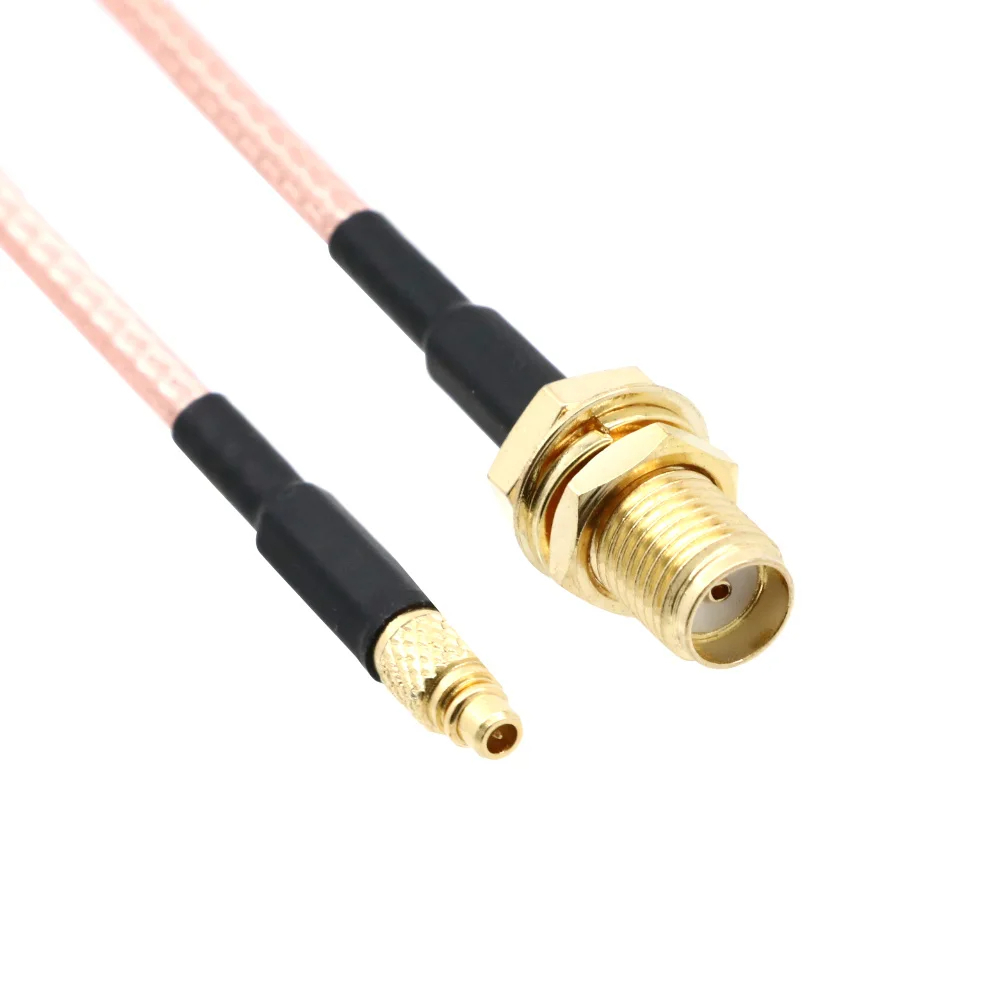

connector: MMCX Smart Audio: IRC-tramp
Shell Material: Aluminum

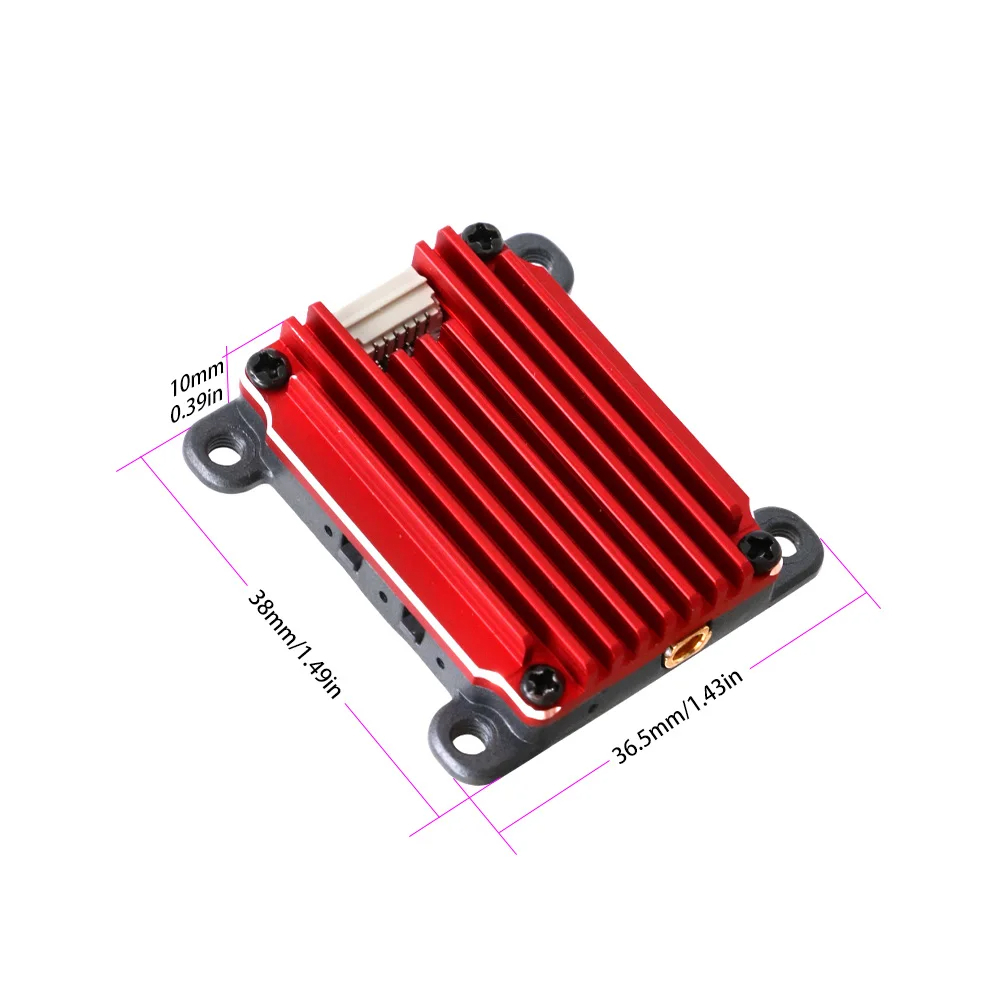

Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(hole)

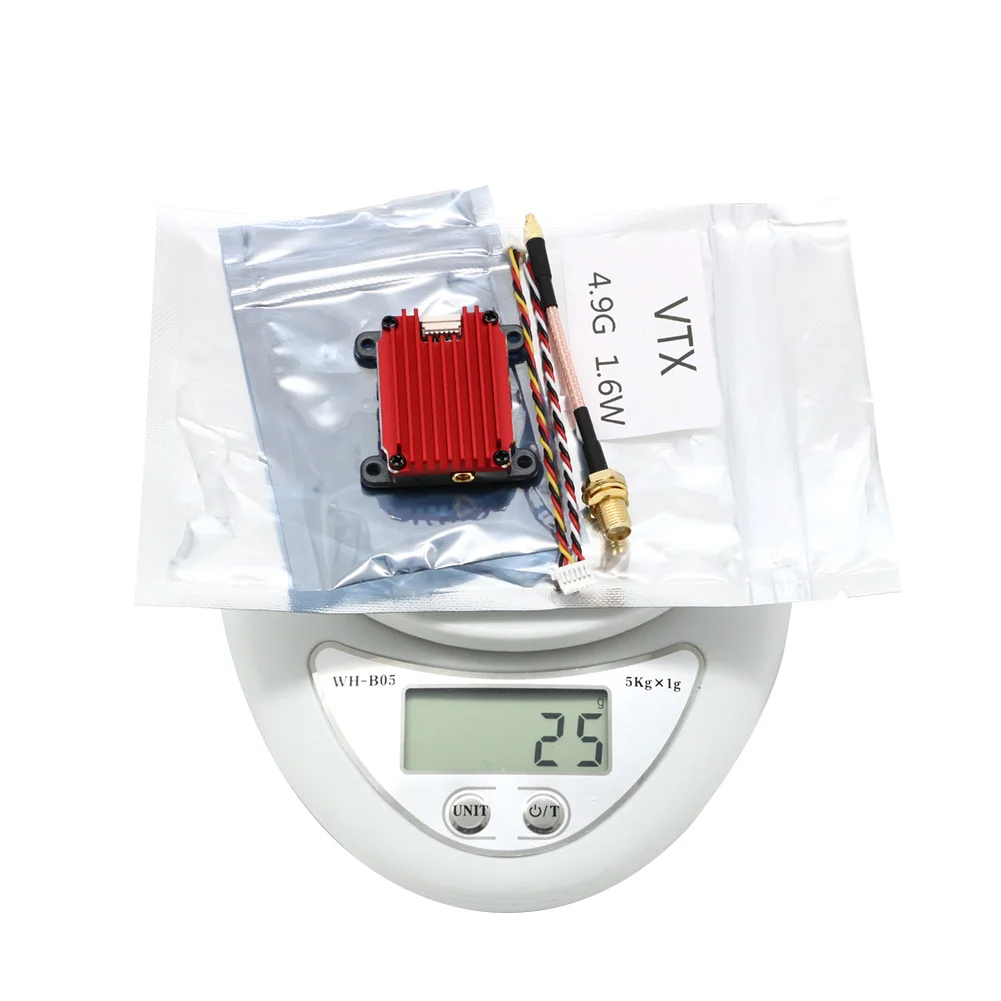

Weight: 15.8g
4.9G 2.5W VTX:
Input Voltage: 7-36V DC;2-8S Output Voltage: 5V 1A
12V Input Current: 180mA@Pitmode, 200mA@25mW, 330mA@1000mW,
410mA@2000mW, 620mA@2500mW
Channels: 8CH (4990MHz-5200MHz)
Power: PIT/25/400/800/1600 mW Antenna connector: MMCX Smart Audio: IRC-tramp
Shell Material: Aluminum
Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(hole)
Weight: 15.8g
5.8G 1.6W 48CH VTX:
Input Voltage: 7-36V DC;2-8S Output Voltage: 5V 1A
12V Input Current: 180mA@Pitmode, 200mA@25mW, 330mA@400mW,
410mA@800mW, 620mA@1600mW
Channels: 48CH (A.B.E.F.R.L;5362MHz-5945MHz)
Power: PIT/25/400/800/1600 mW Antenna connector: MMCX Smart Audio: IRC-tramp
Shell Material: Aluminum
Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(hole) Weight: 15.8g

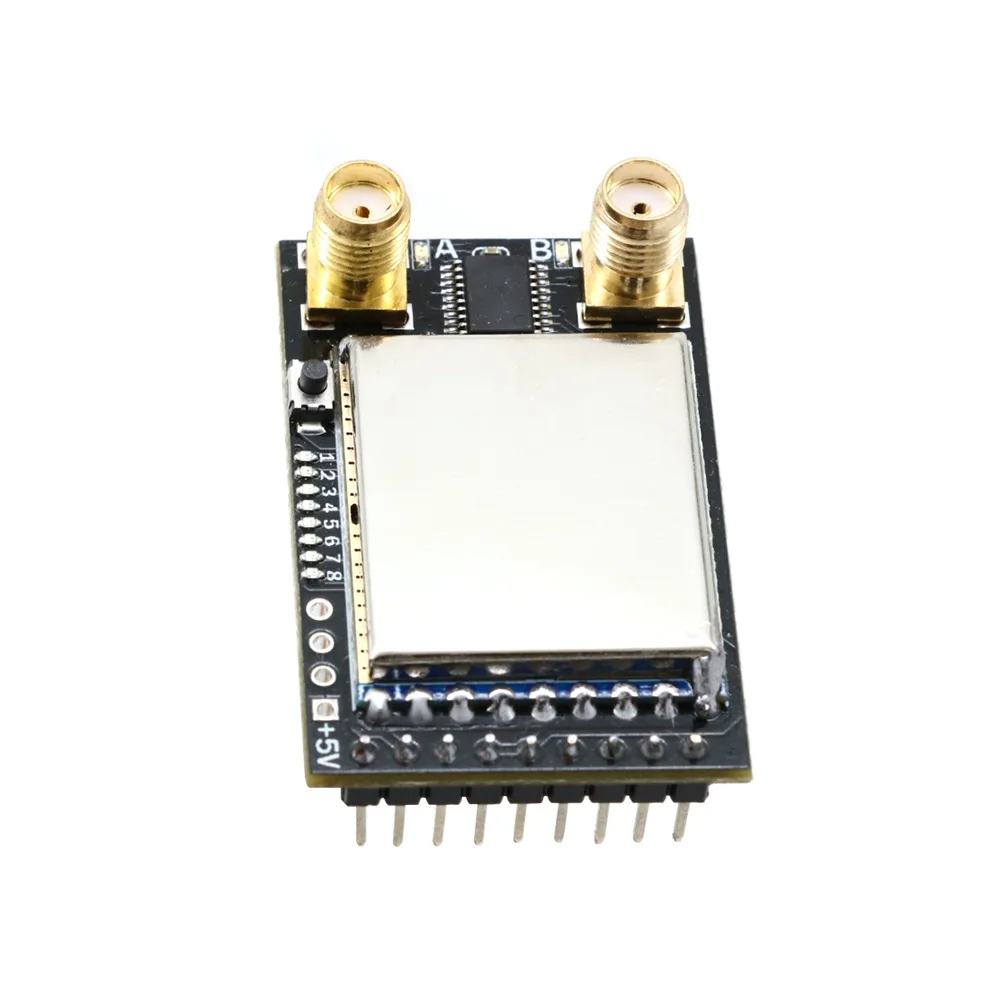

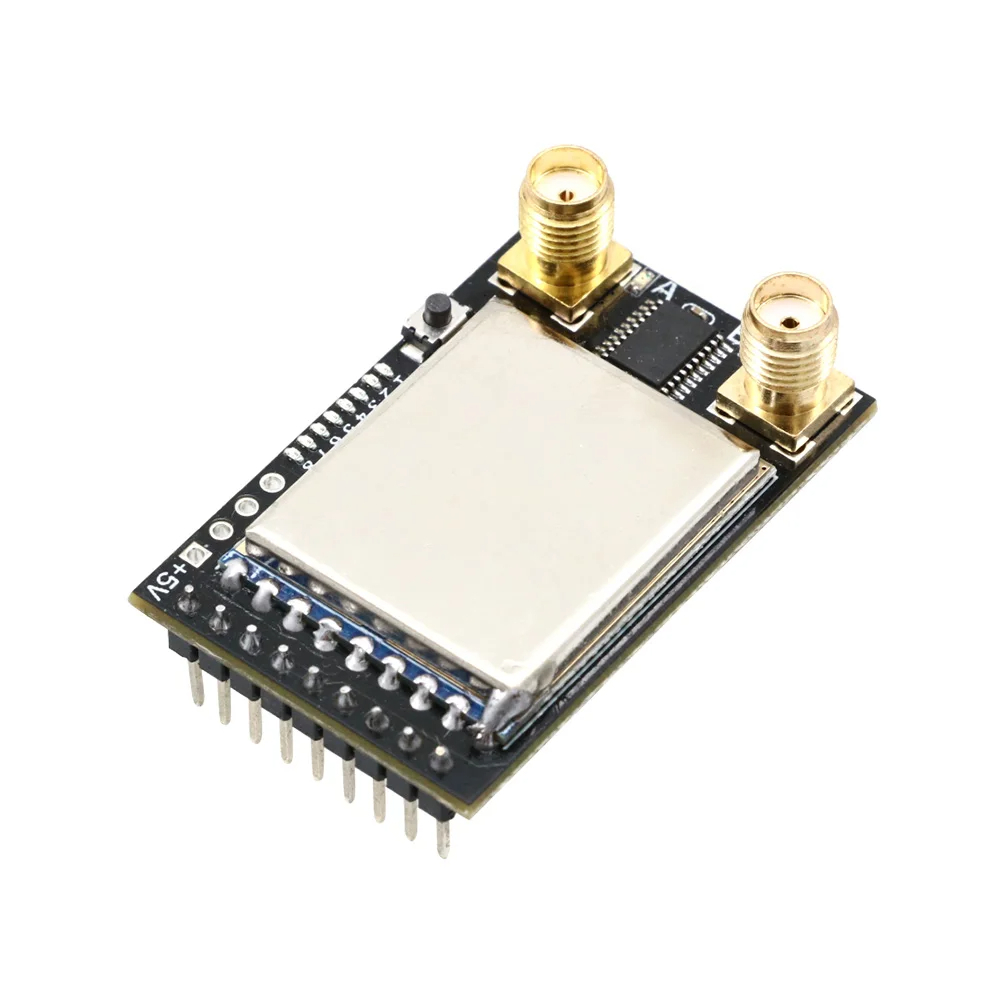

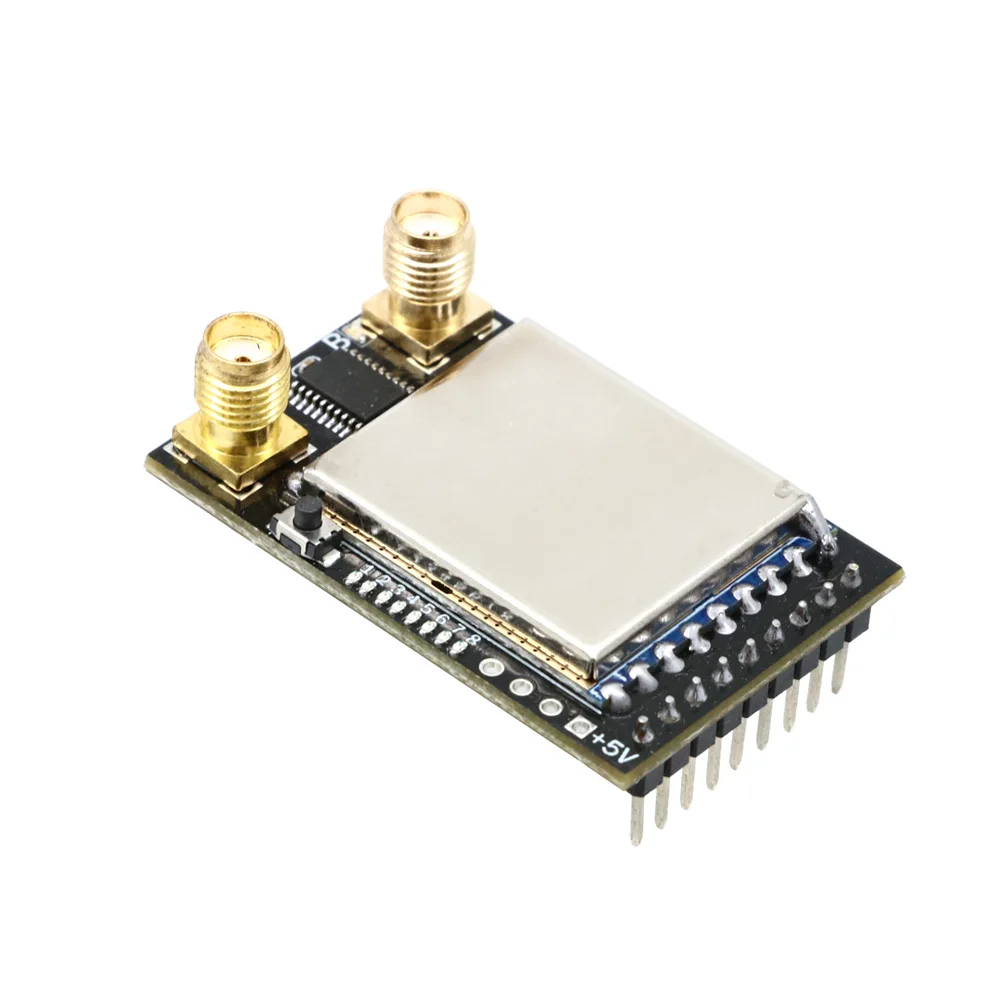

4.9G 8CH VRX
Receiving frequency: 8CH (4990MHz to 5200MHz)
Input voltage：DC 5V
Current consumption: (380±40) mA@5V
RX Sensitivity: -90dBm
Voltage Standing Wave Ratio: 2:1
Demodulation System: FM/PLL
ANT. input impedance: 50Ω, Typ.
Video Output impedance: 75Ω, Typ.
Audio Ouput Frequency Range: 100Hz-20000Hz
RF Connector: SMA
Weight: 15.6g ( w/o antanna)
Size: board 42.5mm (L)*27.7mm (W)*20mm (H)
