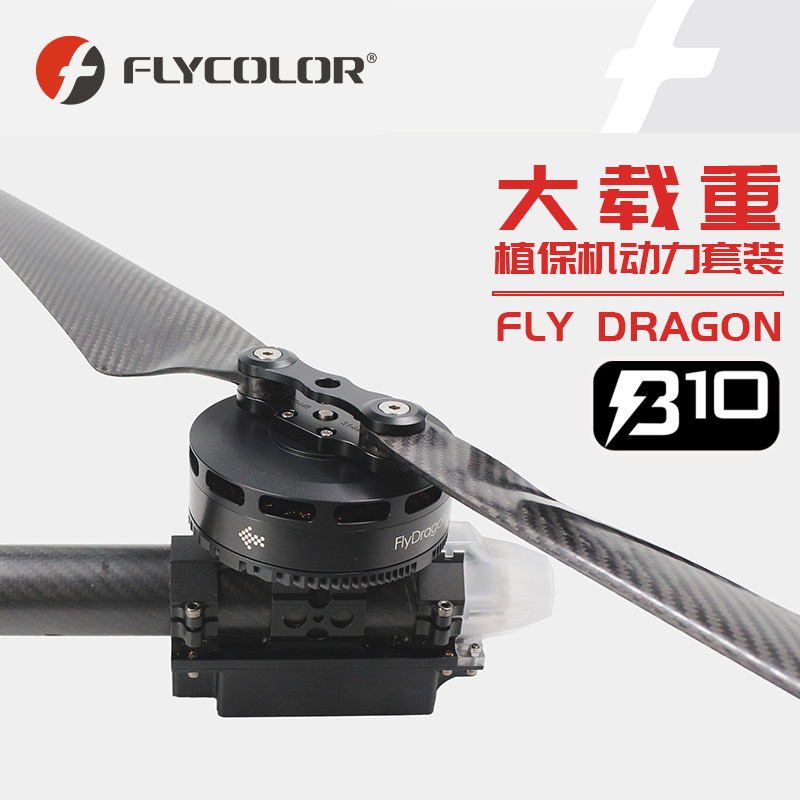

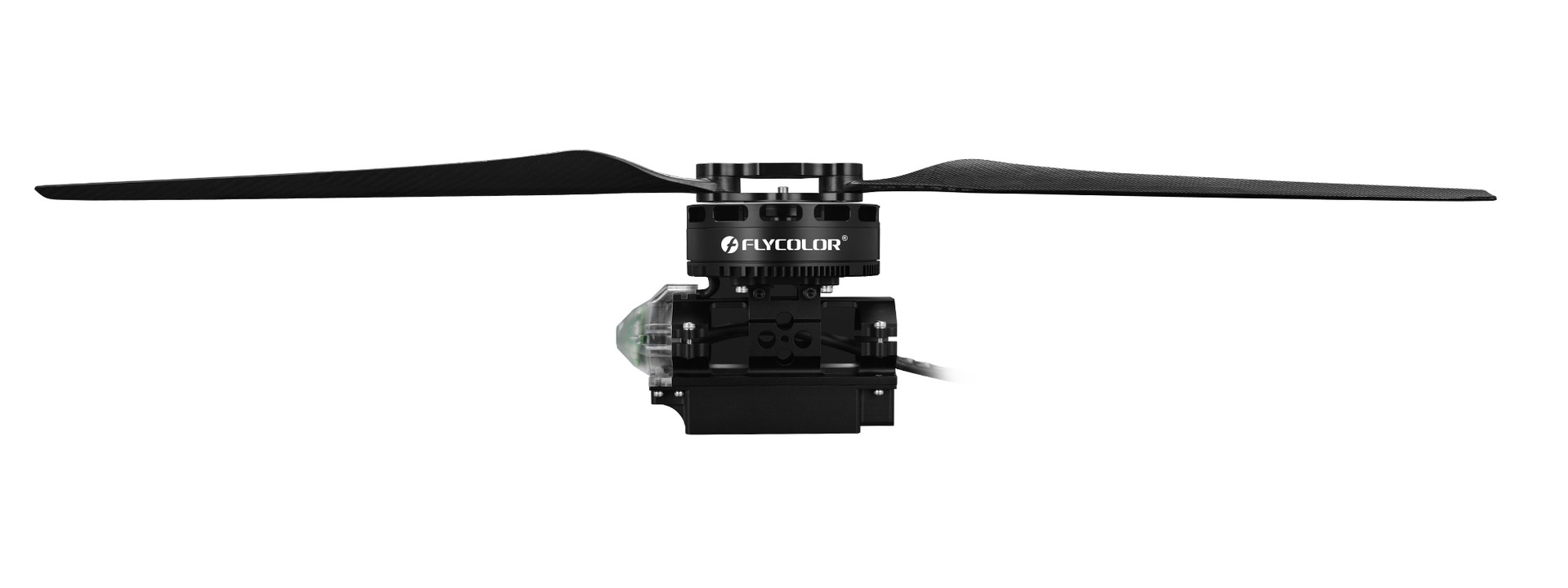

Flycolor Flydragon B10 10010 Motor 130A ESC 33" Propeller Propusion Combo for Heavy Payload Drones

Flycolor Flydragon B10 10010 Motor 130A ESC 33" Propeller Propusion Combo for Heavy Payload Drones

DESCRIPTION

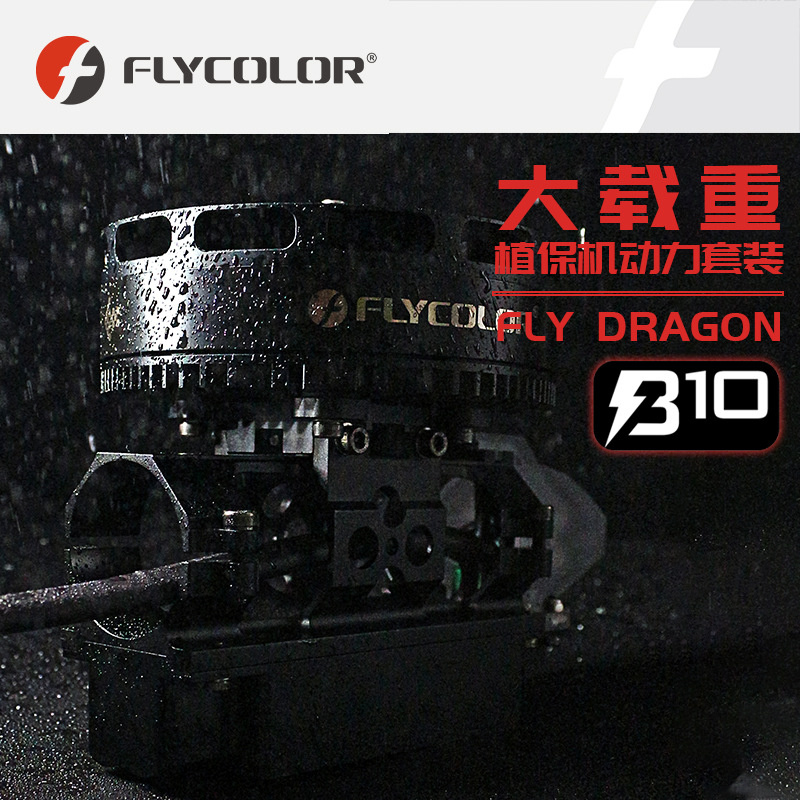

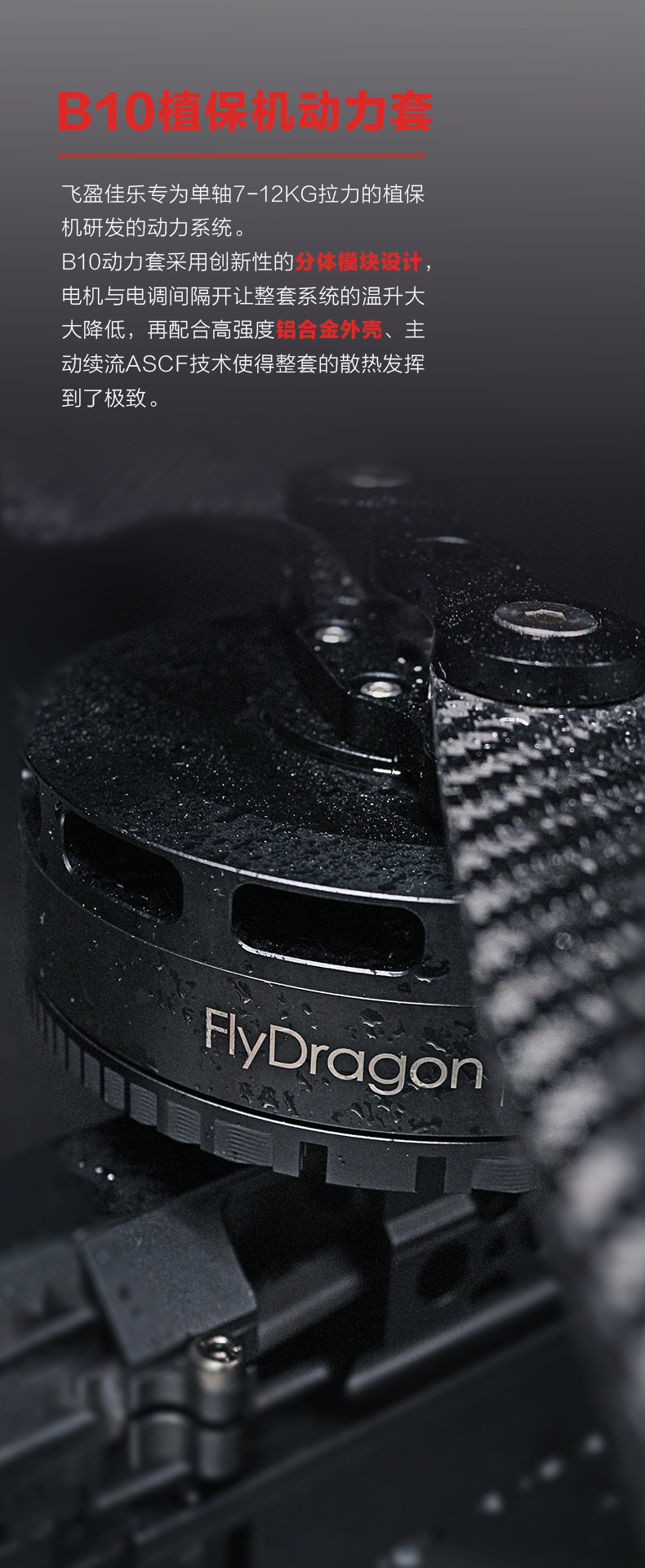

Flycolor Flydragon B10 propusion power system specially designed for 7-12kg thrust for singe axis multirotors for agriculture drones or other industrial application UAV drones.   B10 adopts an innovative split module design, the motor is seperated from the ESC, which greatly reduces the temperature rise of the entire system. Combined with a high-strength aluminum alloy shell, the active continuous flow ASCF technology makes the entire set of heat play to the extreme.

Main Features:

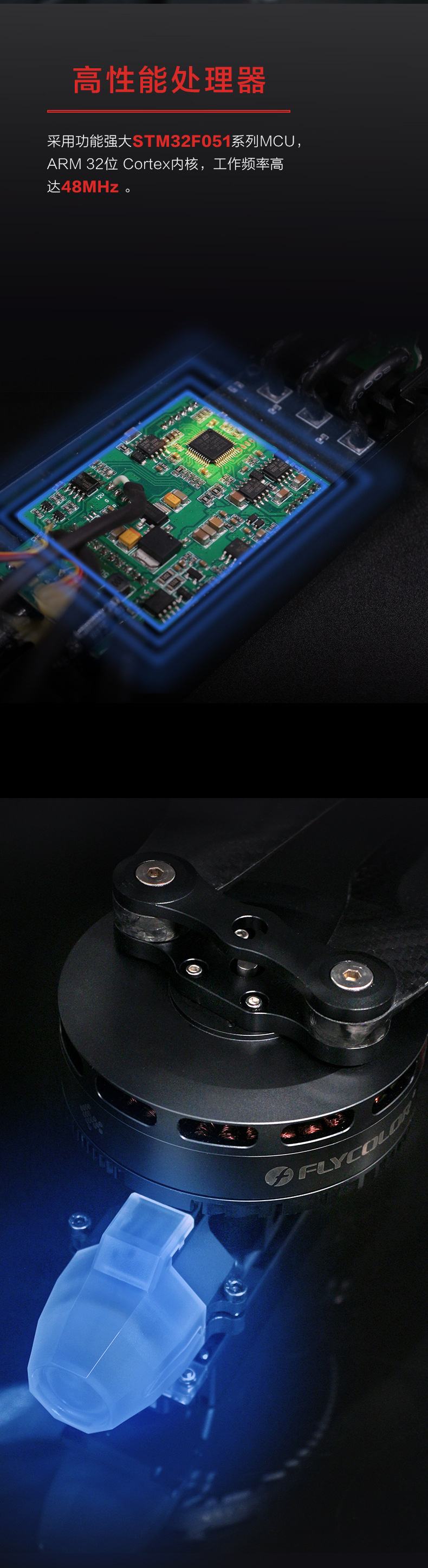

High-Performance Processor

With the powerful STM32F051 series MCU, ARM 32-bit Cortex core, the working frequency up to 48MHz

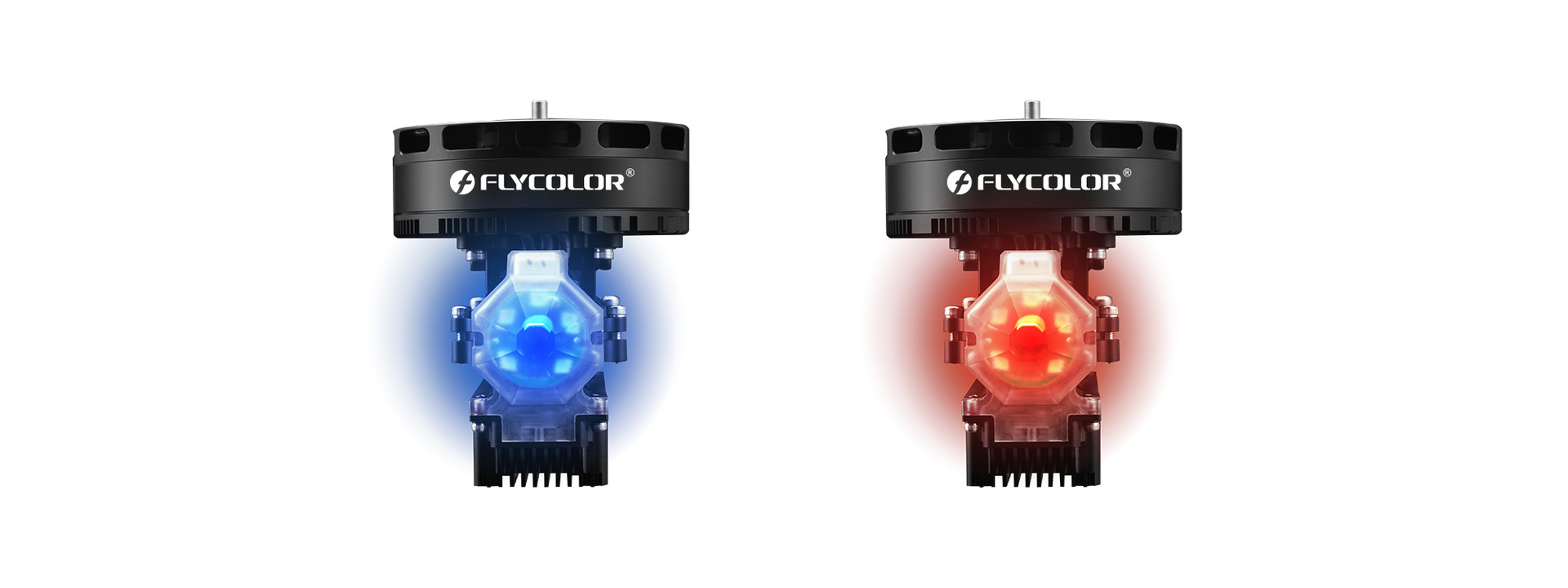

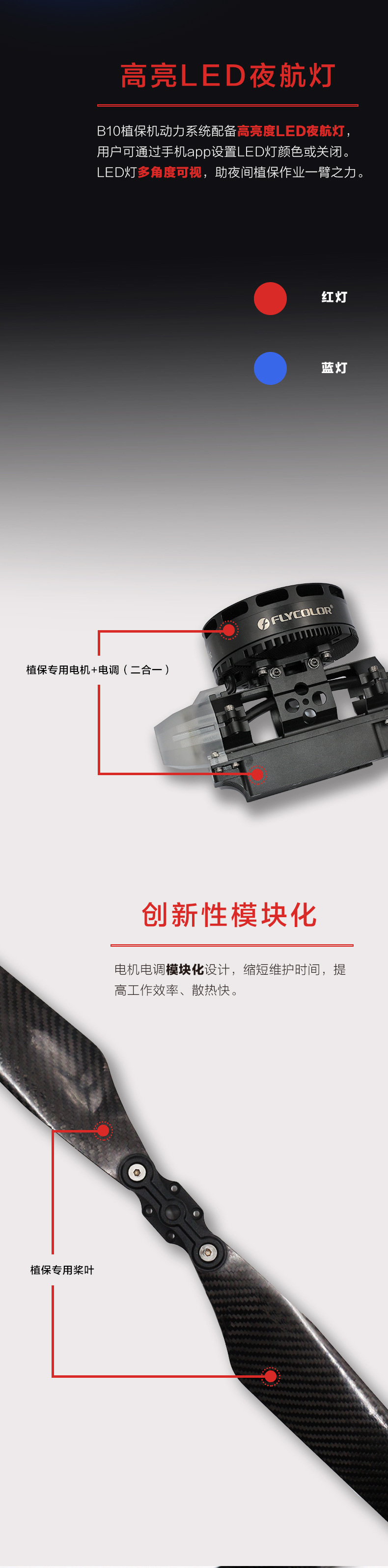

Highlight LED light

Flycolor B10 propusion system comes with high-bright LED night light, users can freely set the light color (red + blue). The indicator light can also be turned off. LED lights can be viewed from multiple angles, which helps the drones working at night.

Innovative Module Design.

The modular design of the motor and ESC shortens the maintenance time, improves the work efficiency and heate dissipation.

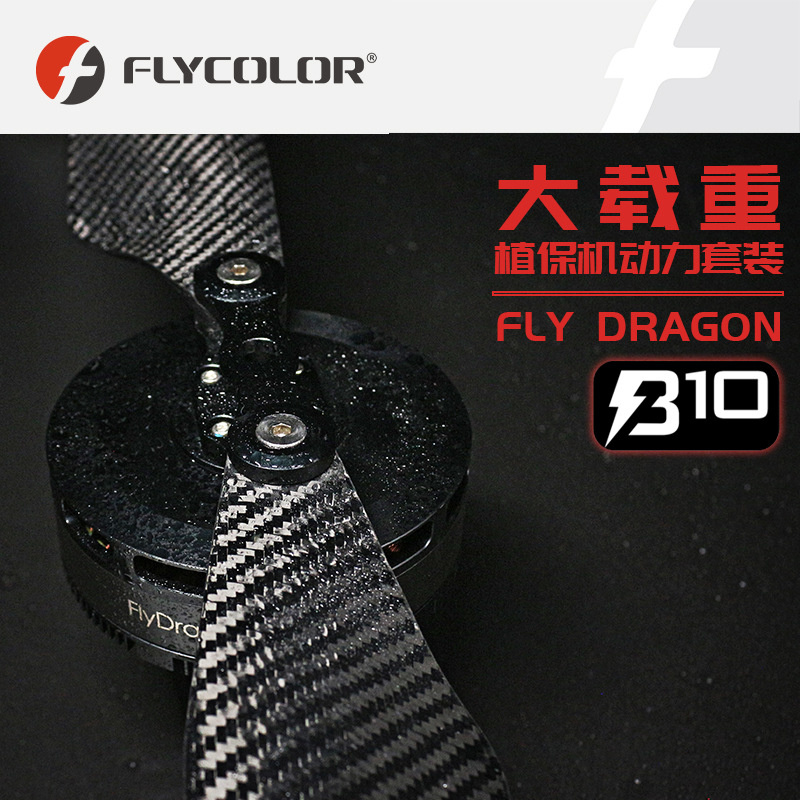

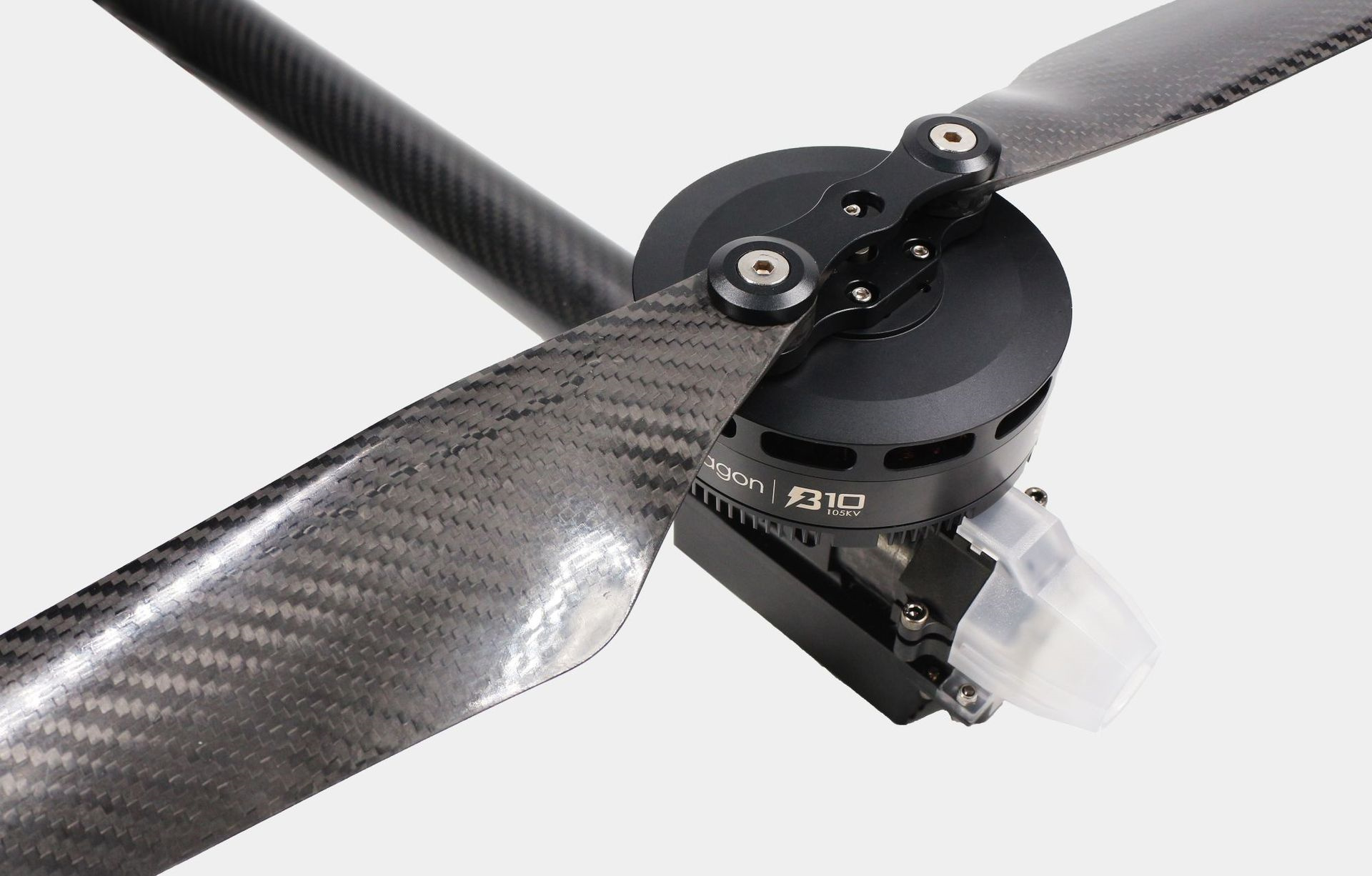

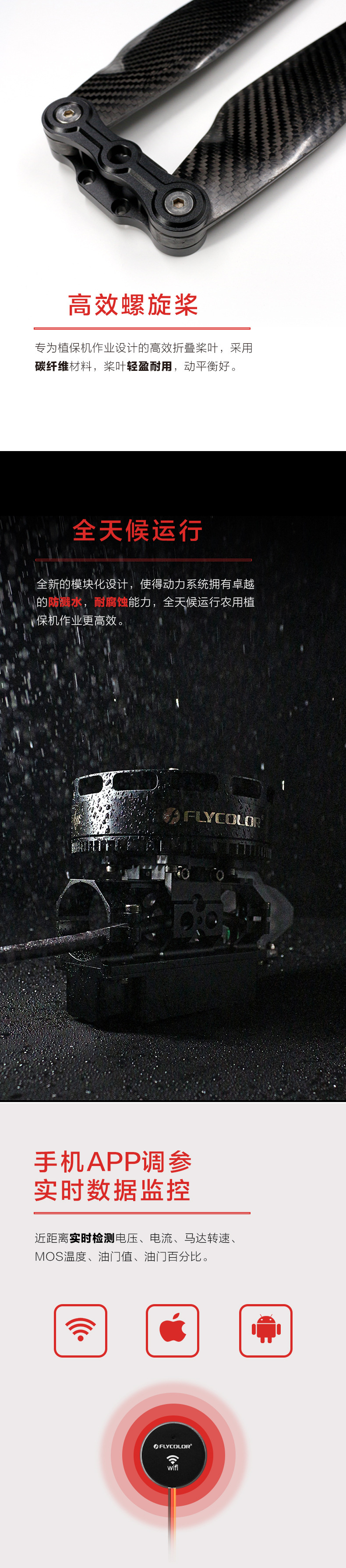

High Efficiency Propeller

The 3360 33 inches high-efficiency folding propeller is speicially designed for heavy payload UAV Drones. The propeller uses carbon fiber material, the blade is light and durable with good dynamic balance.

Great Waterproof Anti-corrosion Capability

The new modular design makes the power system have excellent waterproof and anti-corrosion capabilities, and it is more efficient to operate agricultural plant protection drones around the clock.

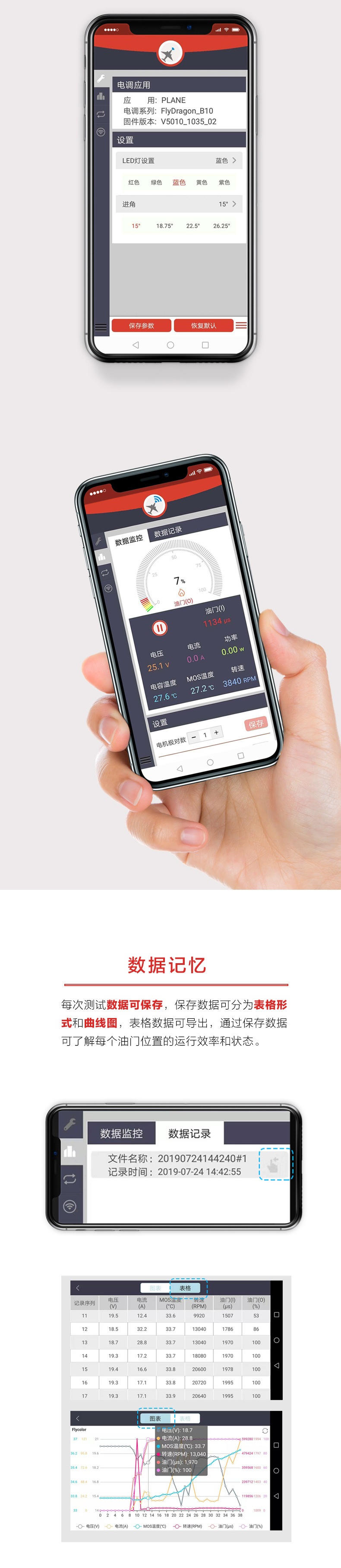

APP Tuning, Real-time Monitoring

Through the APP, you can check voltage, current, motor speed, MOS temperature, throttle value, throttle percentage in real time.

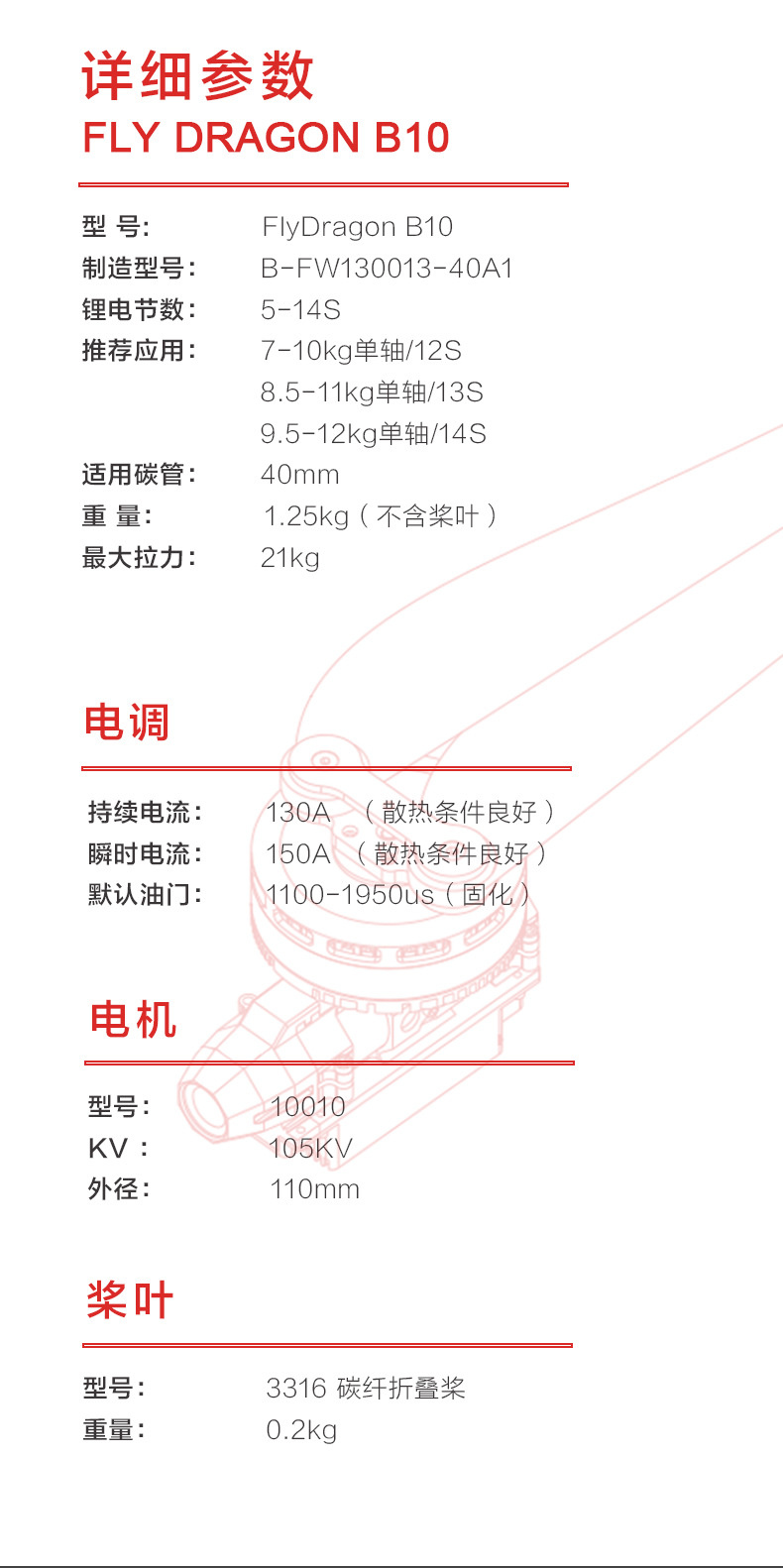

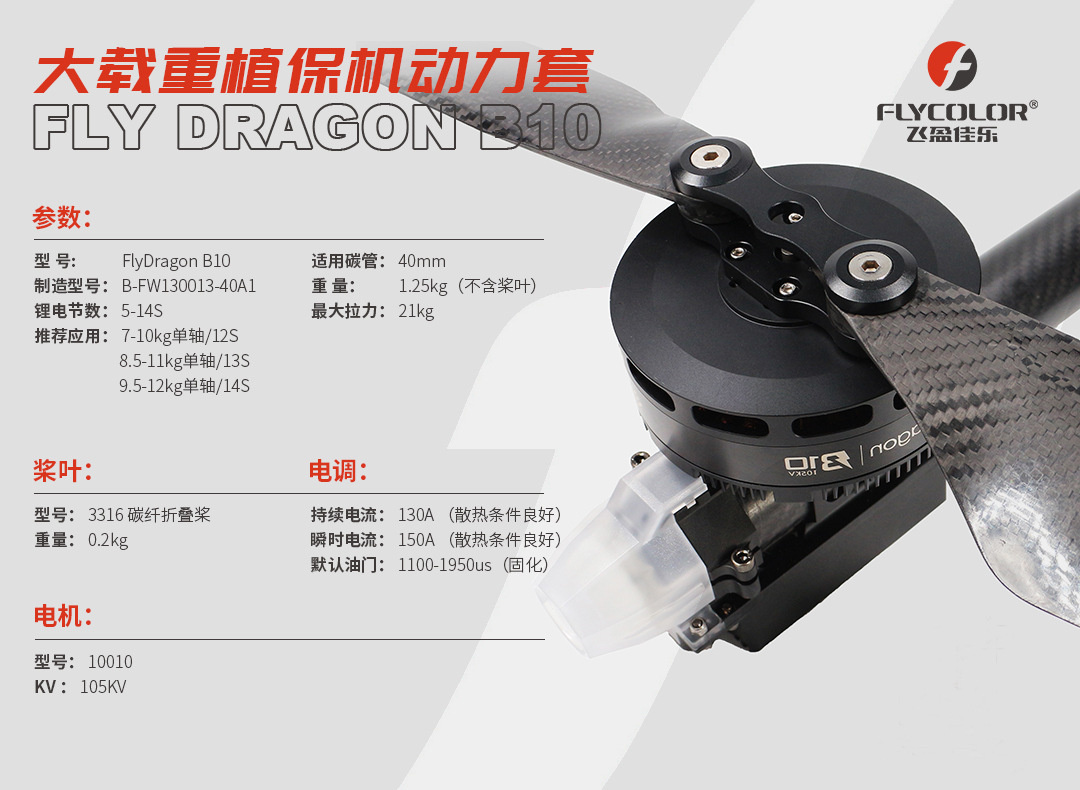

Specifications:

Item Brand: Flycolor

Item Model: Flydragon B10

Recommended Battery: 12-14S Lipo

Recommended Takeoff Weight: 7-10kg/ a rotor (12S)

8.5-11kg/a rotor (13S)

9.5-12kg/a rotor (14S)

Suitable arm diameter: 40mm

Weight : 1.25kg (Propeller not included)

Max Thrust: 21kg

ESC

Con. Current:   130A

Burst Current: 150A

Default Throttle: 1100-1950us

Motor

Item Model: 10010

KV: 105KV

Outer Diameter: 110mm

Propeller

Item Model: 3316 Carbon Fiber Folding Propeller

Weight:   0.2kg

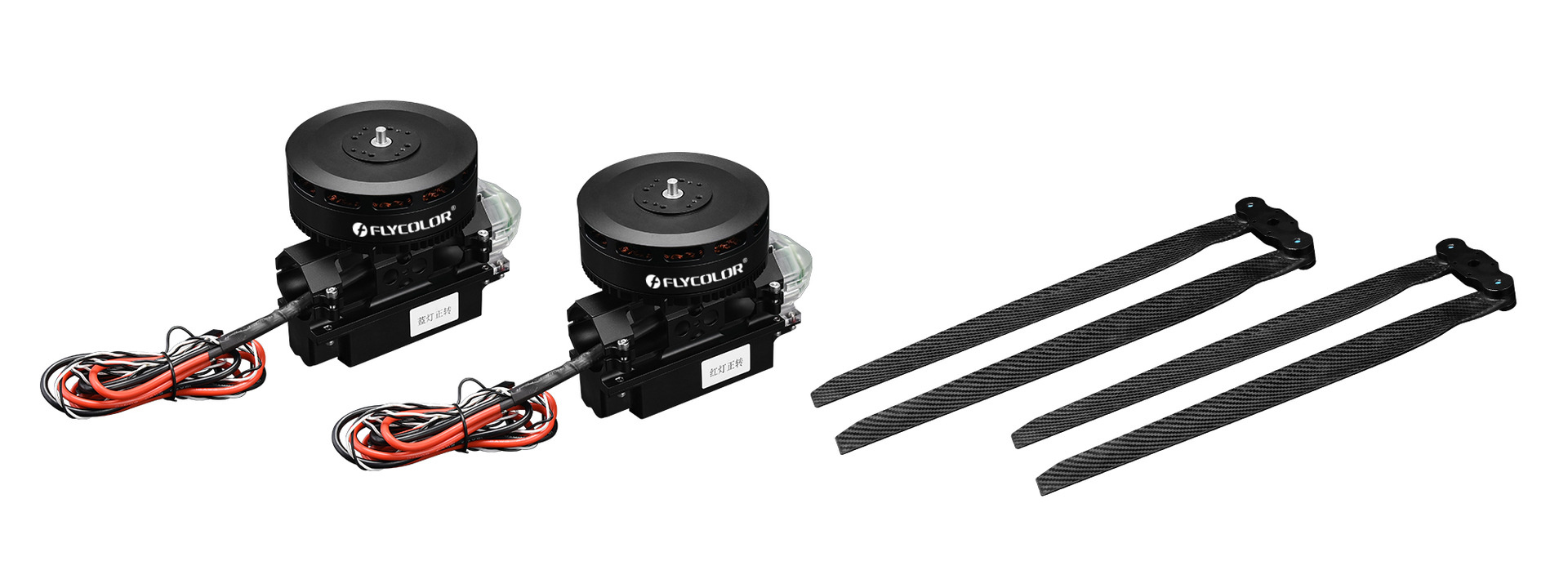

Package Included:

Flycolor Flydragon B10 10010 Motor 130A ESC 33" Propeller Propusion Combo x 1

40MM Tube Arm does not included.
