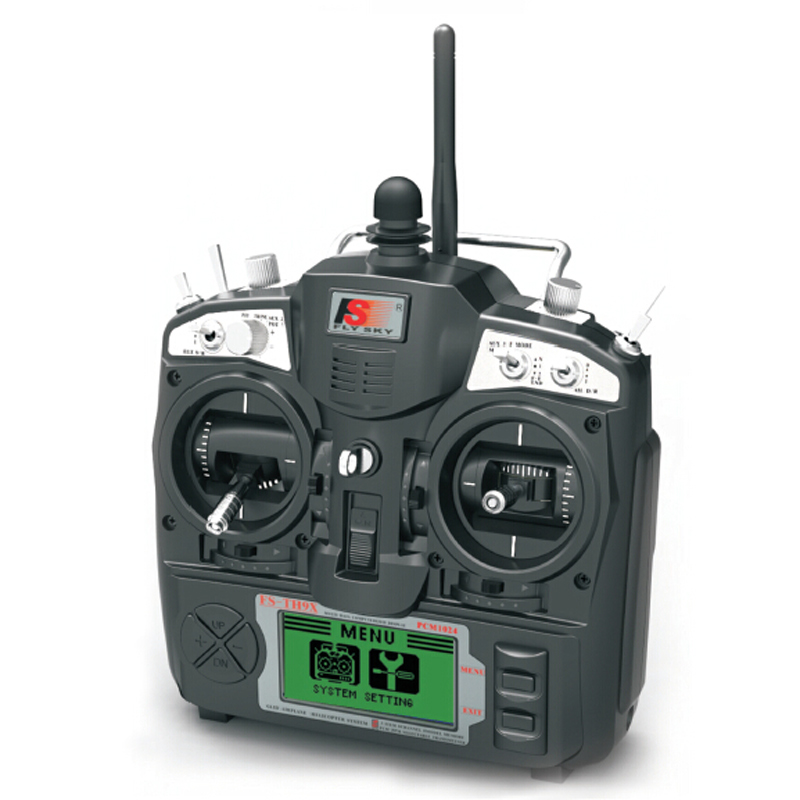

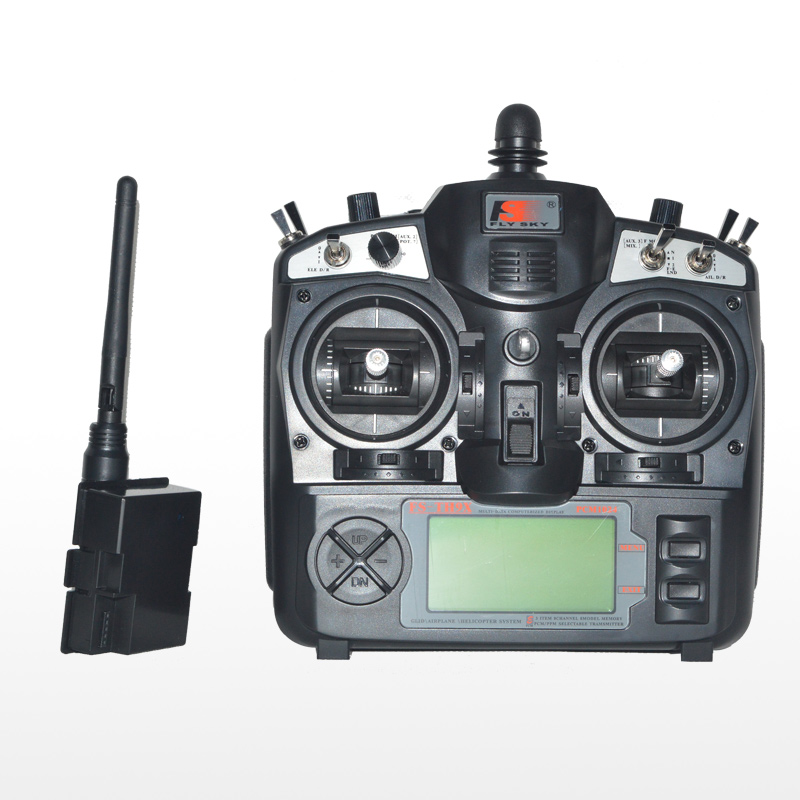

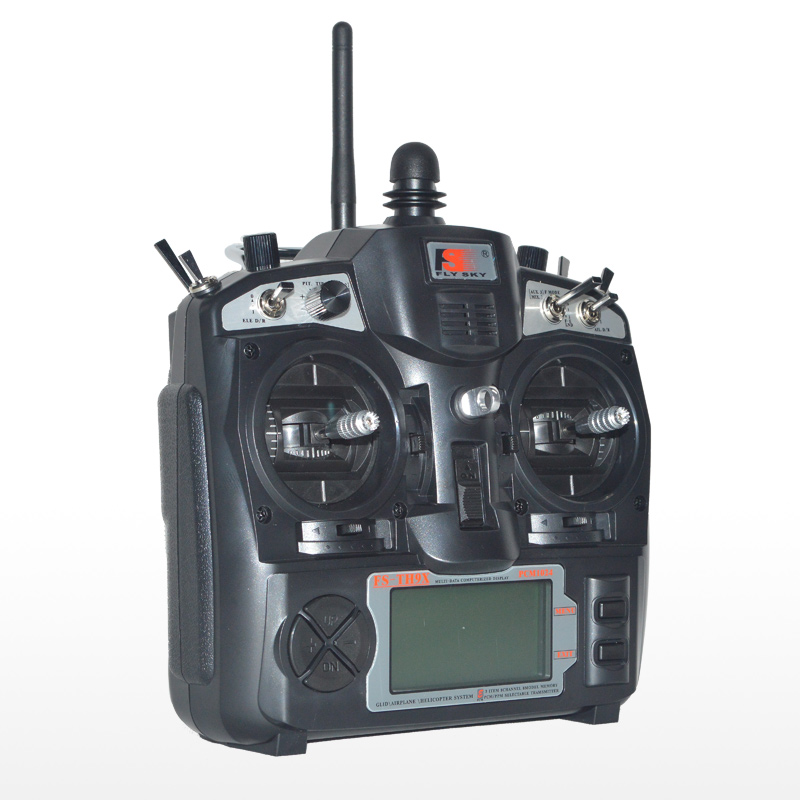

FlySky FS-TH9X 2.4G 9CH RC Transmitter with R8B Receiver for RC airplane helicopter glider
FS-TH9X designed for fixed-wing / glider / helicopter mode. It has 8 channels by default and however can be updated to 14 channels with an external RF module.
Support for open source firmware
Can support up to 14 channels (with external RF module)
RF module can be removed easily
Supports AFHDS / AFHDS 2A RF modules
Uses 8 * AA battery
Channels: 8
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF power: <20dBm
RF Channel: 140
Bandwidth: 500KHz
2.4GHz system: AFHDS
Modulation Type: GFSK
Stick Resolution:4096
Low Voltage Warning: <9V
DSC Port: 3.5mm Jack PPM
Chargeable: Yes
Antenna Length: 26mm
Weight: 690g
Power: 12V DC 1.5AA*8
Display: Transflective STN Positive Screen with
Backlight,128*64 Pixels, VA73*39mm
Size: 190*112*257mm
On-Line Update: No
Color: Black
Certificate: CE0678, FCC
Package Includes:
FS-TH9X Transmitter
FS- R8B Receiver
FS-TM002 High Frequency Connector
Bind Cable
Instructions
Packaging Information:
Box Size: 360*260*125mm
Carton Size: 660*535*380mm
10 set/ exp. ctn Gross
Weight: 11Kg
Net Weight: 7Kg
