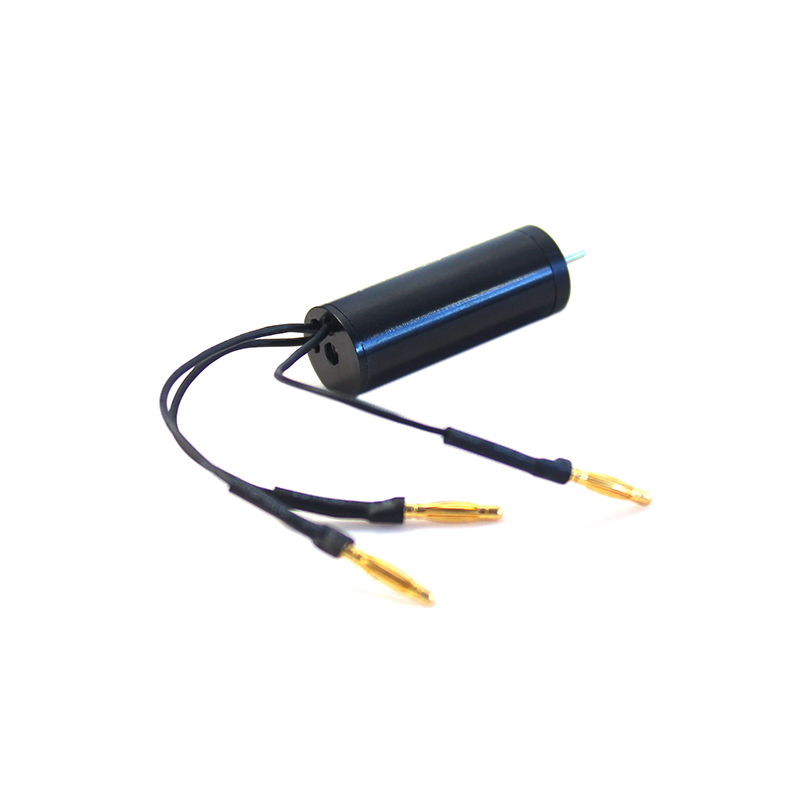

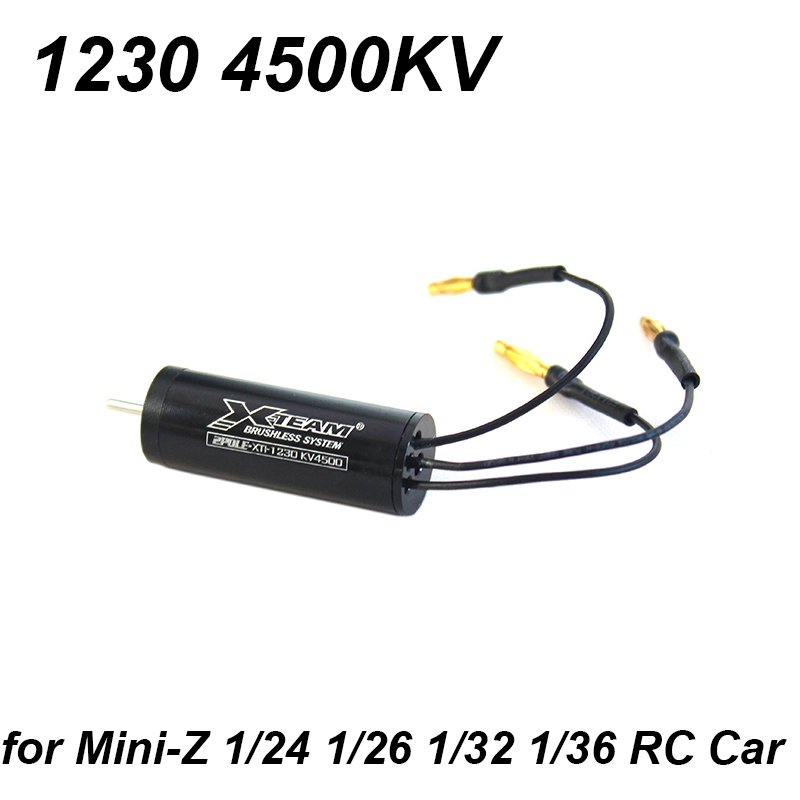

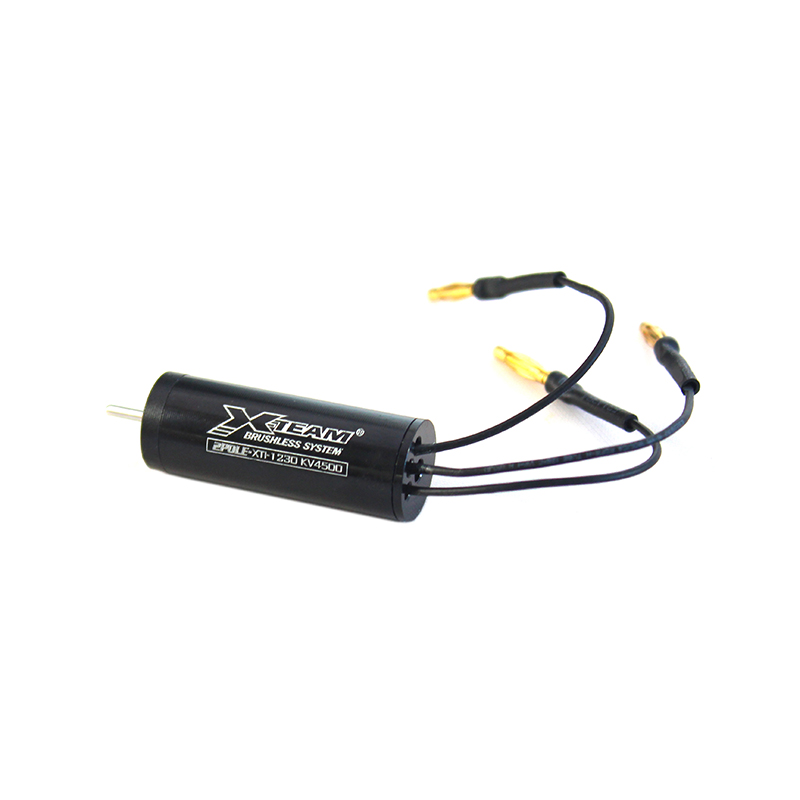

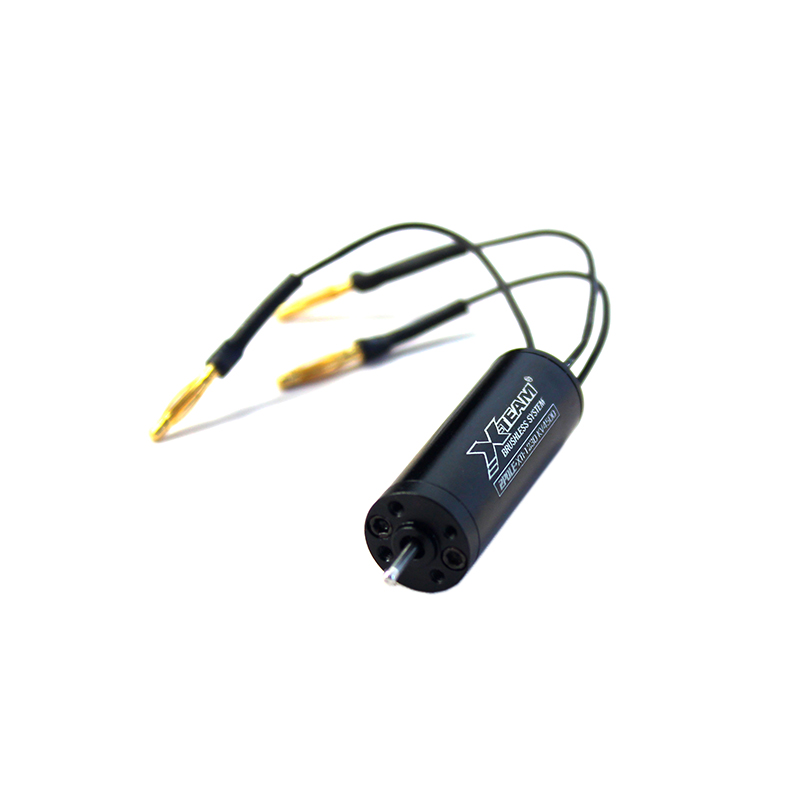

X-TEAM 1230 4500KV Brushless Motor BLDC Motor for Mini-Z 1/24 1/26 1/32 1/36 Remote Control RC Car
Product Name: 12 Series 2-Poles Inrunner Brushless Motor for Mini Car
Model No.: XTI-1230-4500
Applies to: RC Cars (1/24, 1/26, 1/32, 1/36 Mini-Z)
Materials: Metals + Magnet
Color of the Housing: Black
Max Power: 60 W
Max Voltage: 7 V
Max Current: 10 A
KV (RPM/Volt): 4500

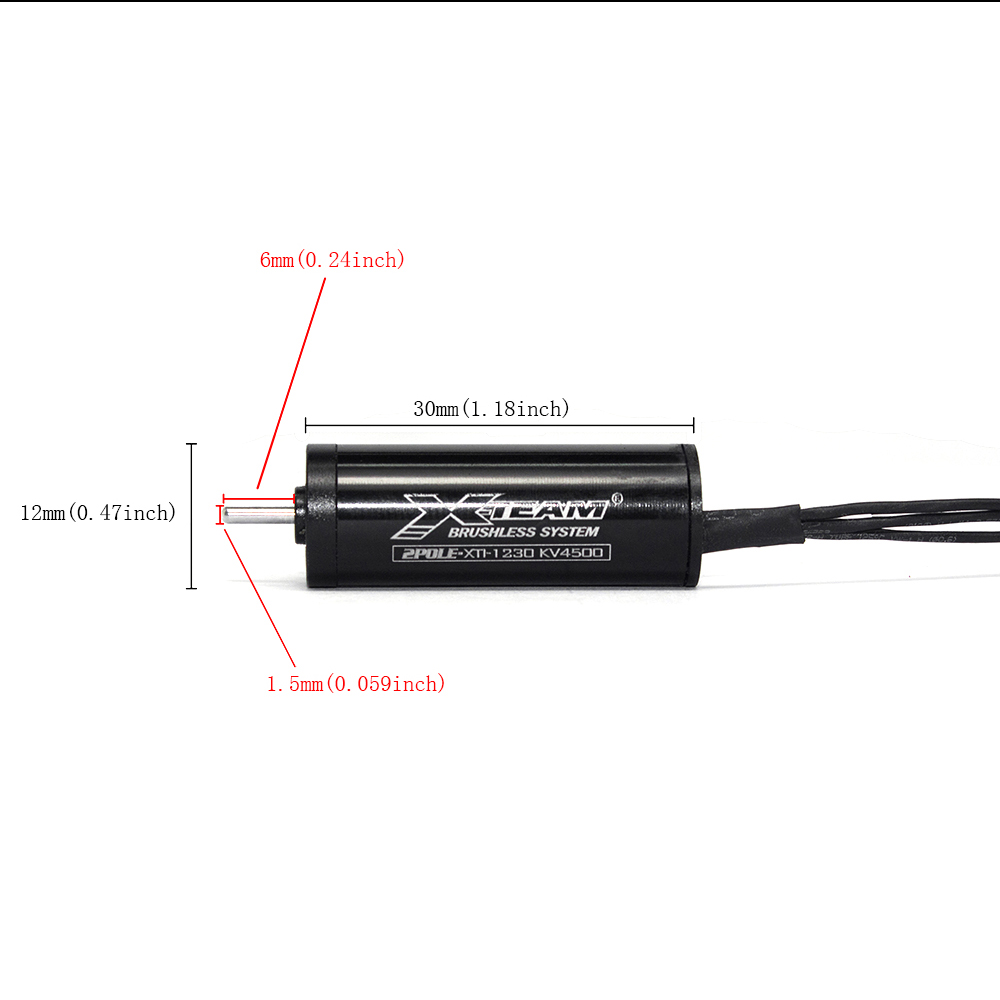

Diameter: 12 mm (0.47 inch)
Length: 30 mm (1.18 inch)
Shaft Diameter: 1.5 mm (0.06 inch)
Length of Extension Shaft: 6 mm (0.24 inch)
Plug: Ø 2.0 mm (0.079 inch), gold plated
Net Weight: 16 g
Packing Box: 6.5X3X2.5 cm
Packing: MotorX1
Logistics Packaging Method: Bubble Bag
Logistics Weight: Approx. 35 g
