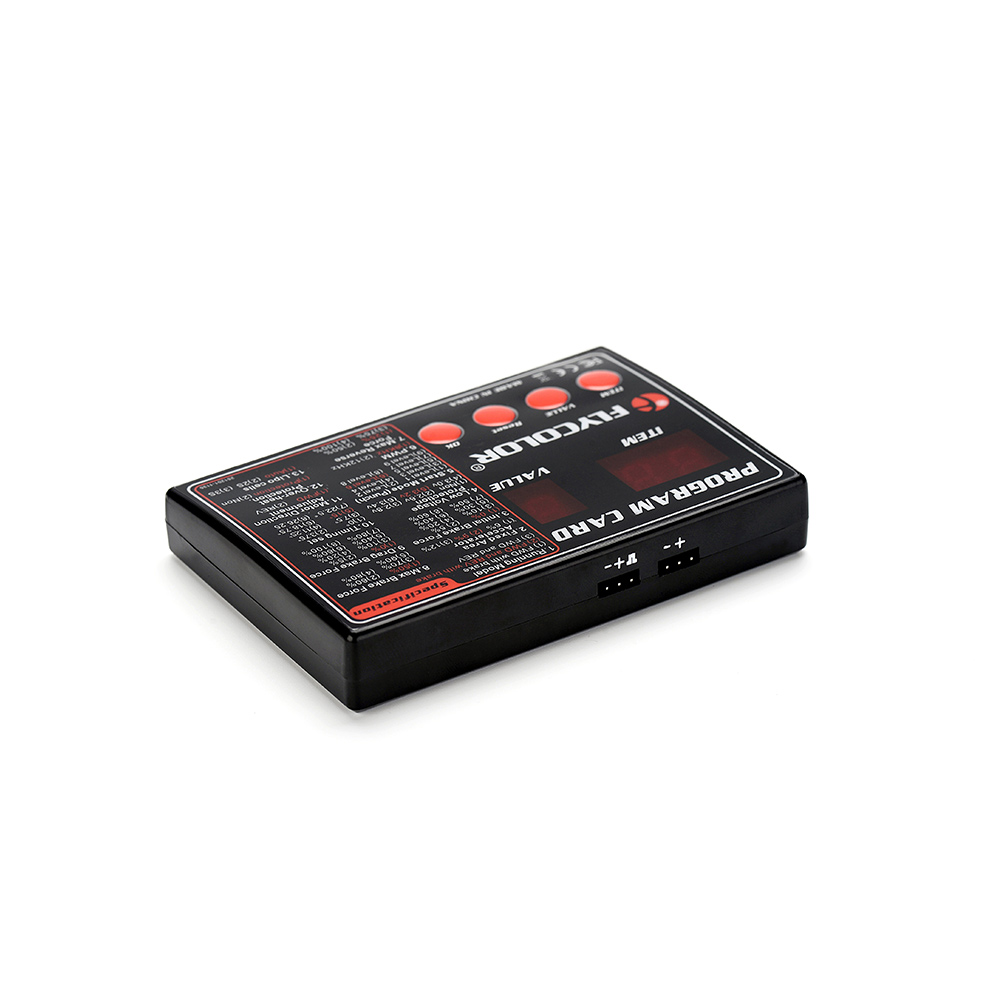

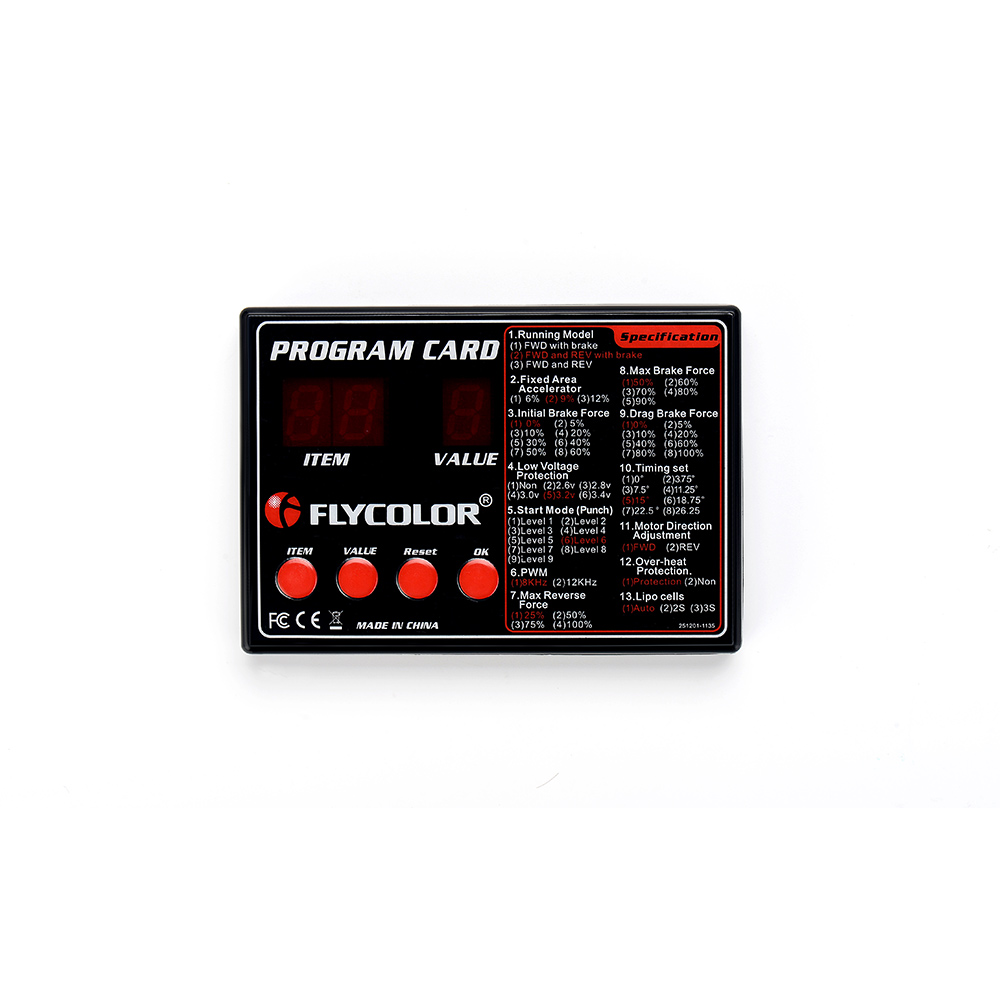

Flycolor program card for RC Lightning series Car ESC electronic speed controller
1)Insert ESC signal line into corresponding (+ -) interface(Notes: For ESC without BEC output, please add 5VDC via “ +–”);
2) Use [ITEM] to select the item to modify;
3) Press [VALUE] to select parameter for the item;
4) Press [OK] VALUE window to display “S”, indicating the parameter setting is complete;
5) Press [RESET] and then press [OK] to restore factory default items.
Model | Con. Current | Burst Current(10S) | Battery | BEC | Weight | Size | Typical Applications |
Lightning-18A | 18A | 50A | 2-3s lipo/6-10s Ni-MH | 2S:6V/2A | 40g | 34×29×19mm | 1:18/1:16 |
3S:6V/1A |
Lightning-25A | 25A | 90A | 2-3s lipo/6-10s Ni-MH | 2S:6V/2A | 42g | 34×29×19mm | 1:18/1:16 |
3S:6V/1A |
Lightning-35A | 35A | 190A | 2-3s lipo/6-10s Ni-MH | 2S:6V/2A | 46g | 34×29×19mm | 1:18/1:16 |
3S:6V/1A |
Lightning-45A | 45A | 260A | 2-3s lipo/6-10s Ni-MH | 2S:6V/2A | 54g | 34×29×31mm | 1:10 |
3S:6V/1A | (Including Fan) |
Lightning-45A | 45A | forward 340A, | 2s lipo/5-6s Ni-MH | 5.6V/2A | 38g | 38×27×22mm |
|
(Brushed) | Reverse:160A |
Lightning-60A | 60A | 300A | 2S LiPo: KV≤6000;
3S LiPo: KV≤4000 | 6V/3A | 60g | 47.5×35×36mm | 1:10 |
|
Lightning-80A | 80A | 500A | 2S LiPo: KV≤6000;
3S LiPo: KV≤4000 | 6V/3A | 60g | 47.5×35×36mm | 1:10 |
|
Lightning-120A | 120A | 750A | 2S LiPo: KV≤6000;
3S LiPo: KV≤4000 | 6V/3A | 60g | 47.5×35×36mm | 1:8 |
|
Lightning-160A | 160A | 1000A | 2S LiPo:KV≤ 6000;
3S LiPo: KV≤4000 | 6V/3A | 60g | 47.5×35×36mm | 1:6 |
|
