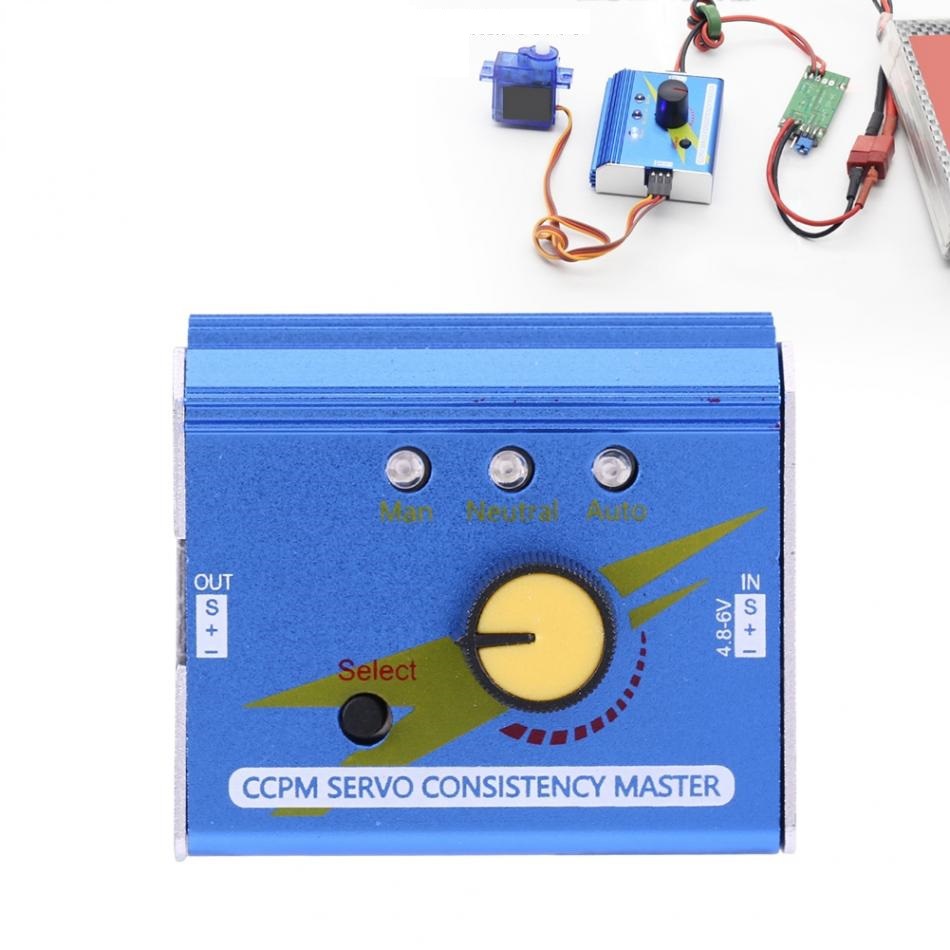

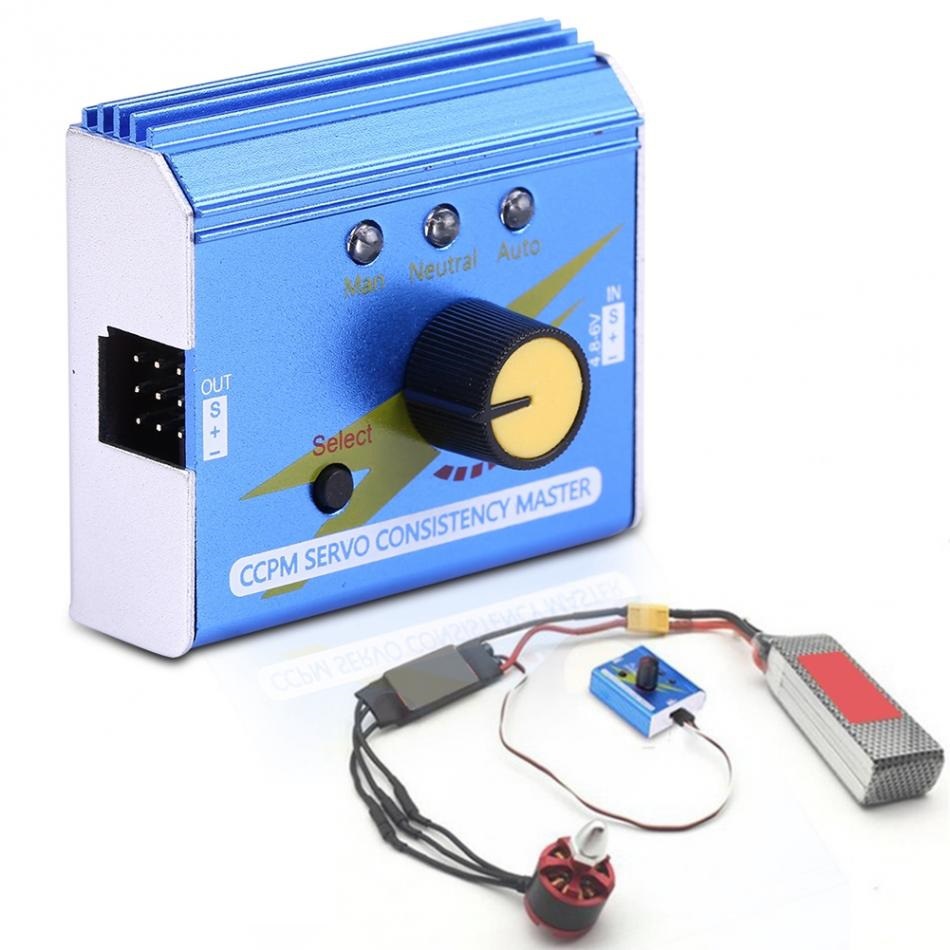

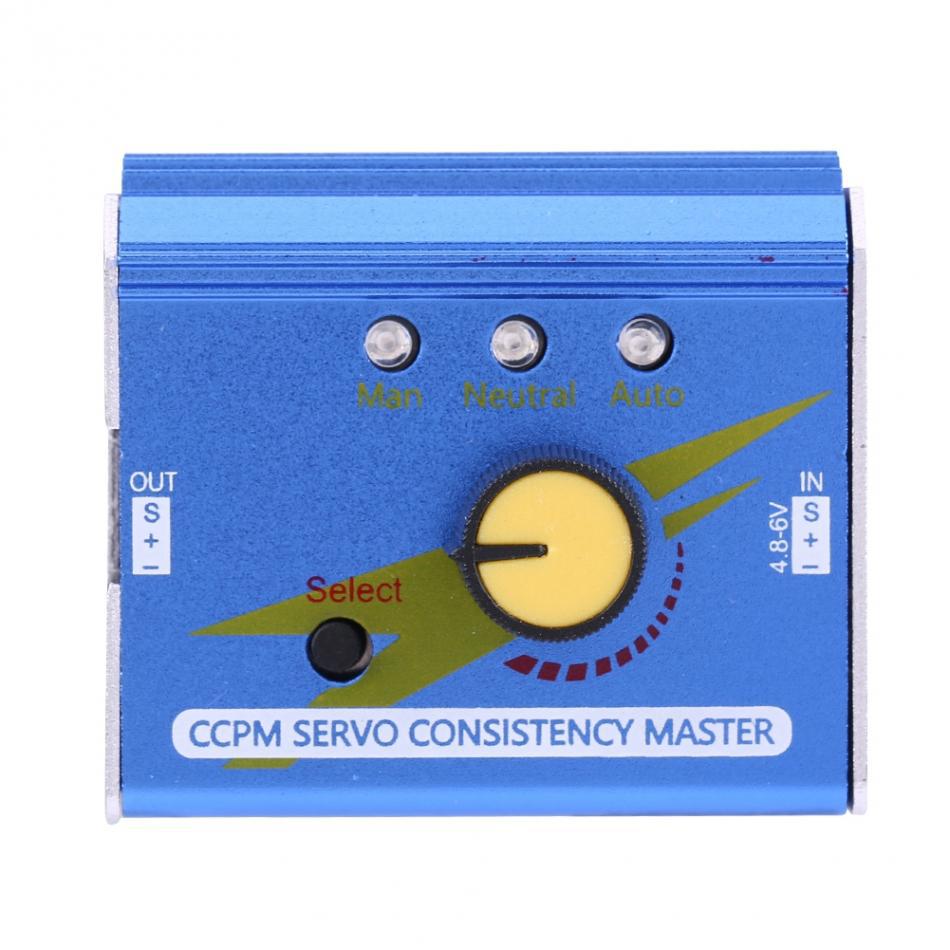

Servo Tester - CCPM Servo Consistency Master
CCPM Servo Consistency Master is a very handy servo driver/tester that can test the consistency and set the centering for up to 3 servos simultaneously.This is great for anyone who is setting up an RC airplane, car, or CCPM 3D helicopter and would like to see if their servos are actually working or compare the response time of each servo before installing them in your model. Additionally, you can put your servo to neutral/center mode withouta Transmitter/Receiver at all.
This small device may be used to test and set up servos either to check reliability and control throws, centralise servos before installation, or to drive an ESC without going anywhere near your transmitter and receiver. All you need is a 4.8V battery pack.
Features:
* 3 mode operation:
1.Manual: to check servo speed and reaction time using the control knob
2.Neutral: to drive the servo to the neutral/centre point
3.Automatic: to drive the servo back and forth between the end points - mimics windscreen wiper operation
* 1-3 servos may be connected simultaneously.
* 1-3 ESCs may be connected simultaneously to test and compare their reaction time respectively.
* It can connect 3 servos of CCPM helicopters and select servos.
* It is particularly useful when installing servos into aircraft so that you can centre the servos and check the extent of travel without the need for your transmitter and receiver.
specifications:
Voltage consumption: DC4.8-6V
Net weight:7g
product dimension:35*30*12mm
Package included:
1*- CCPM Servo Consistency Master/Servo tester
